FRONT CONSOLE BOX REMOVAL/INSTALLATION

id091700602300

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Center console tray (See CENTER CONSOLE TRAY REMOVAL/INSTALLATION.)

(2)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F65M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F66M-R].)

(3)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(4)  Shift bezel (See SHIFT BEZEL REMOVAL/INSTALLATION.)

(5)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(6)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(7)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

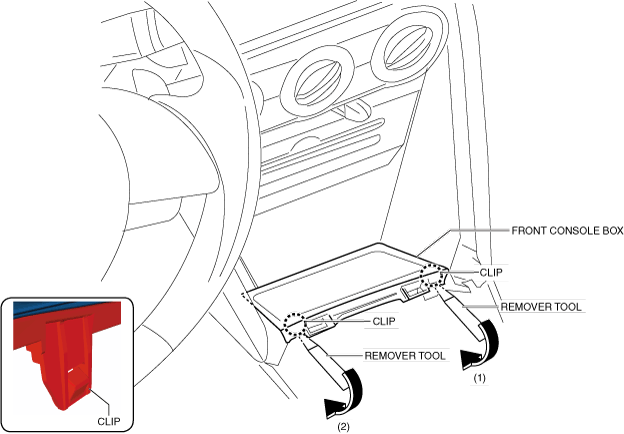

3.  Insert a remover tool in the position indicated by the arrow (1) in the figure and detach the clip.

am2zzw00014292

4.  Insert a remover tool in the position indicated by the arrow (2) in the figure and detach the clip.

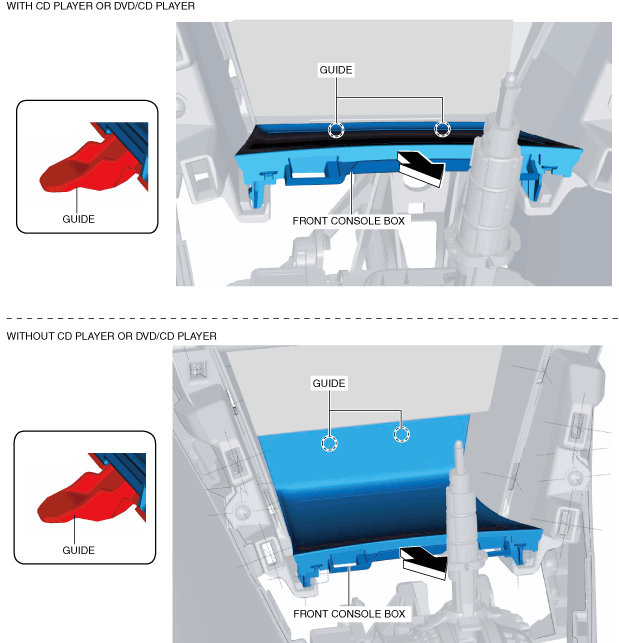

5.  Remove the front console box in the direction of the arrow shown in the figure while detaching the guides.

am2zzw00013733

6.  Install in the reverse order of removal.
