B-PILLAR UPPER TRIM REMOVAL/INSTALLATION
id091700602800
1. Remove the following parts:
2. Partially peel back the seaming welt.

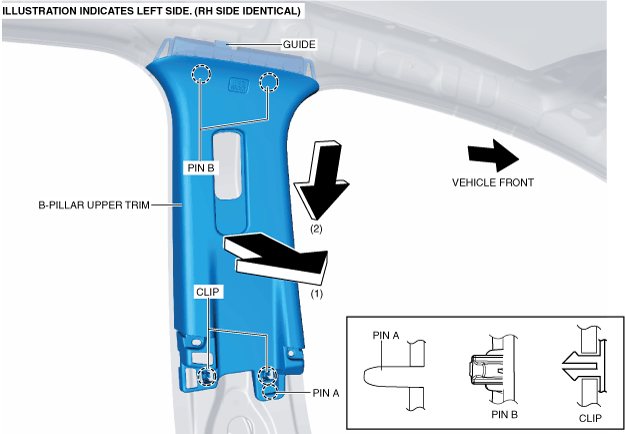

3. Pull the B-pillar upper trim in the direction of the arrow (1) while detaching the clips, pin A, pins B.
am2zzw00013700
|
4. Remove the B-pillar upper trim in the direction of the arrow (2) shown in the figure while detaching the guide.
5. Install in the reverse order of removal.
