REAR DOOR TRIM REMOVAL/INSTALLATION

id091700603700

1.  Disconnect the negative battery cable. (with power window system) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the power window subswitch (rear). (with power window system) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

3.  Remove the regulator handle. (with manual window system) (See REGULATOR HANDLE REMOVAL.) (See REGULATOR HANDLE INSTALLATION.)

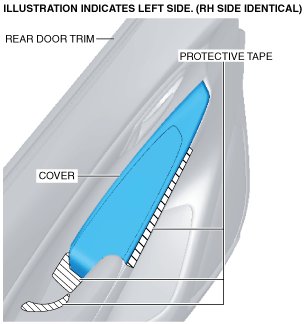

4.  To prevent scratches or damage, affix protective tape to the position shown in the figure of the rear door trim. (with manual window system)

Caution

•  If work using protective tape is performed in an area where the temperature can increase drastically or the protective tape is left adhered for a long period of time, tape adhesive could remain area where the protective tape was applied when it is peeled off. When applying protective tape, avoid areas where the temperature of the tape can increase drastically and peel off the protective tape soon after the work is completed.

am2zzw00014196

5.  Insert a remover tool shown in the figure and remove the tab A in the direction of arrow (1). (with manual window system)

am2zzw00014197

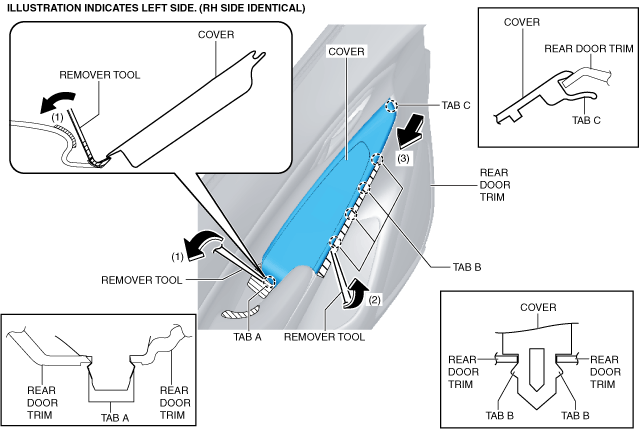

6.  Insert a remover tool shown in the figure and remove the tabs B in the direction of arrow (2). (with manual window system)

7.  Slide the cover in the direction of the arrow (3) shown in the figure and remove the tab C. (with manual window system)

8.  Remove the inner handle cover while detaching the tabs, pins.

am2zzw00013656

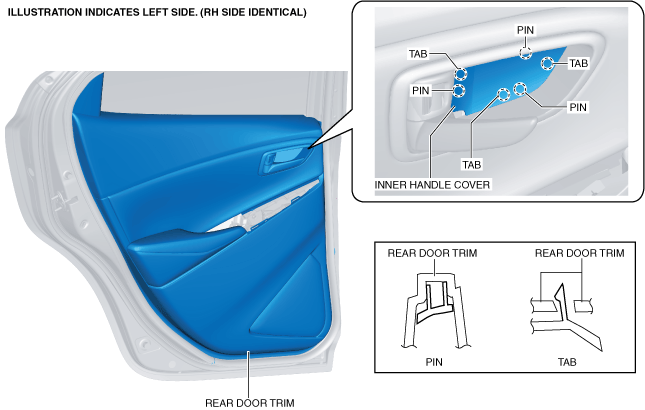

9.  Affix protective tape to the shaded position shown in the figure.

am2zzw00014198

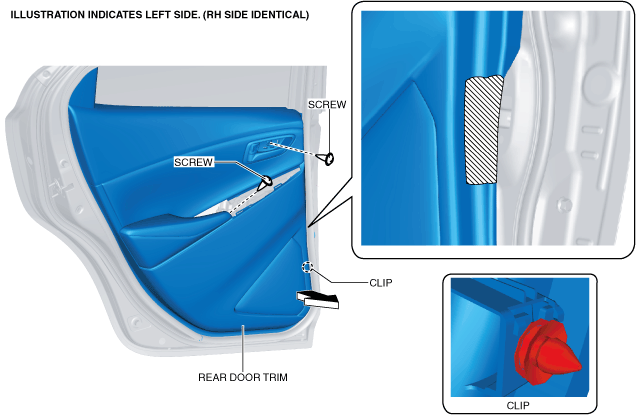

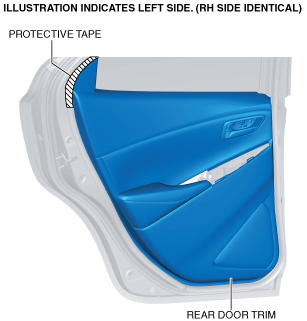

10.  Remove the screws.

am2zzw00014199

11.  Hold the shaded area shown in the figure with your hand, pull the rear door trim in the direction of the arrow, and detach the clip.

12.  Pull the rear door trim in the order of arrows (1), (2) and (3) shown in the figure and detach the clips.

am2zzw00013657

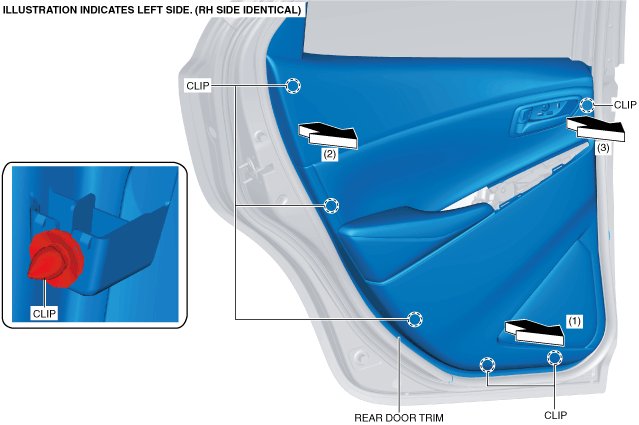

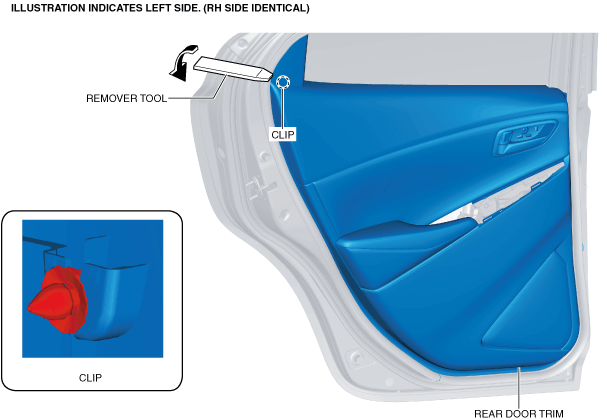

13.  Insert the remover tool into the position shown in the figure.

am2zzw00013658

14.  Move the remover tool in the direction of the arrow shown in the figure, and detach the clip.

am2zzw00013659

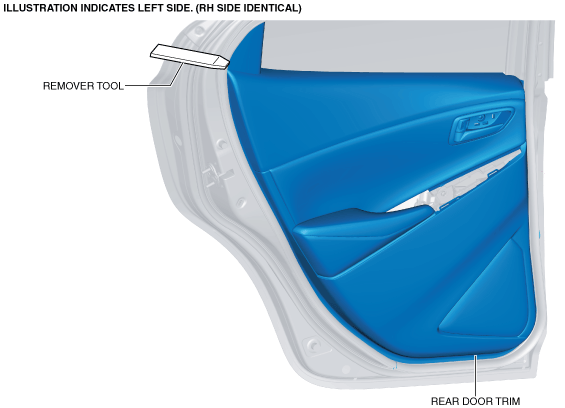

15.  Insert the remover tool into the position shown in the figure.

am2zzw00013660

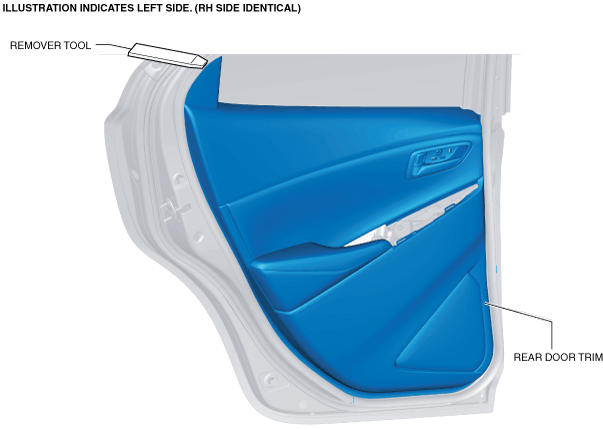

16.  Move the remover tool in the direction of the arrow shown in the figure, and detach the clip.

am2zzw00013661

17.  Move the rear door trim in the direction of the arrow shown in the figure and remove the rear door trim.

am2zzw00013662

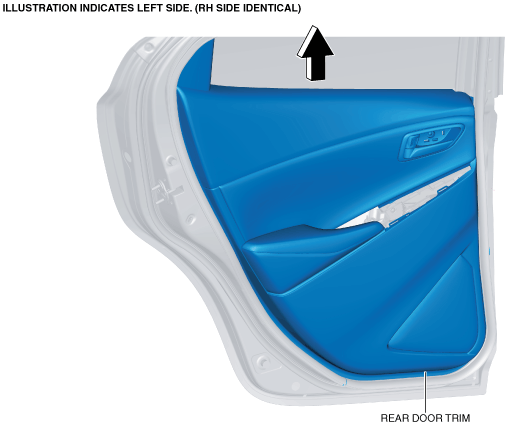

18.  Remove the rear inner weatherstrip from the rear door trim.

am2zzw00014200

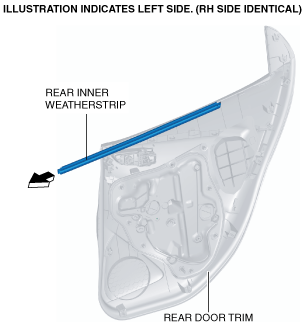

19.  Install in the reverse order of removal. (See Rear Inner Weatherstrip Installation Note.)

Rear Inner Weatherstrip Installation Note

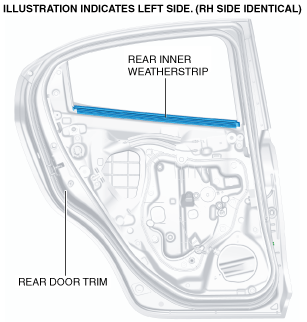

1.  Install the rear inner weatherstrip to the rear door inner panel.

am2zzw00013663
