TRUNK BOARD REMOVAL/INSTALLATION

id091700604700

5HB

1.  Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION.)

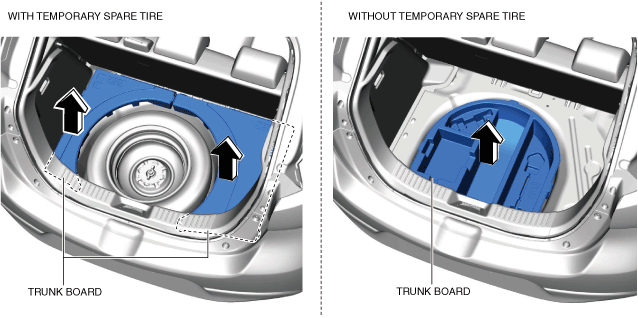

2.  Remove the trunk boards in the direction of the arrows shown in the figure.

am2zzw00014172

3.  Install in the reverse order of removal.

4SD

1.  Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION.)

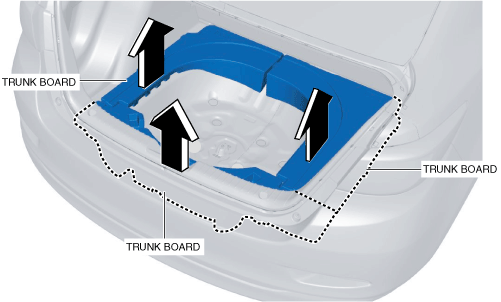

2.  Remove the trunk boards in the direction of the arrows shown in the figure.

am2zzw00014173

3.  Install in the reverse order of removal.
