LIFTGATE UPPER TRIM REMOVAL/INSTALLATION

id091700605100

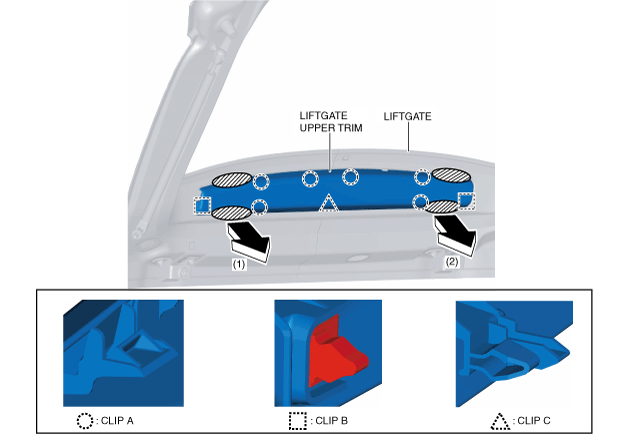

1.  Hold the shaded area shown in the figure, pull the liftgate upper trim in the order of the arrows (1) and (2), detach clips A, B, and C from the liftgate and remove the liftgate upper trim.

am2zzw00013683

2.  Install in the reverse order of removal.
