SUNVISOR REMOVAL/INSTALLATION

id091700605500

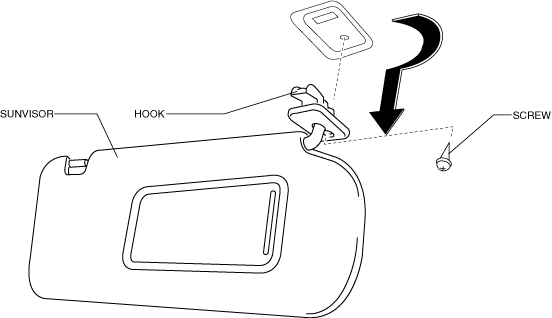

1.  Remove the screw.

2.  Remove the sunvisor in the direction of the arrow shown in the figure while detaching the hook.

am2zzw00013685

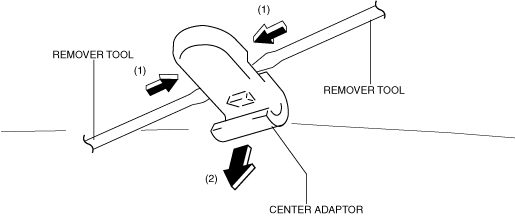

3.  Press the center adaptor tabs in the direction of arrows (1) shown in the figure using two remover tools.

am2zzw00013686

4.  Remove the center adaptor in the direction of arrow (2) shown in the figure.

5.  Install in the reverse order of removal.
