CONSOLE SIDE PANEL DISASSEMBLY/ASSEMBLY
id091700606700
1. Disassemble in the order indicated in the table.
am2zzw00014184
|
1
|
Screw
|
2
|
Console side panel No.1
|
3
|
Console side panel No.2
|
2. Assemble in the reverse order of disassembly.
Console Side Panel No.1 Removal Note

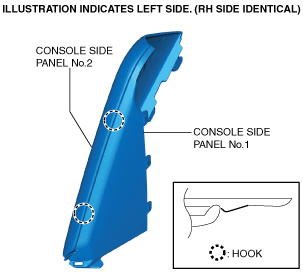

1. While detaching the hooks shown in the figure, remove the console side panel No.1 from console side panel No.2.
am2zzw00014185
|
