WASHER FLUID-LEVEL SENSOR INSPECTION

id091900801900

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

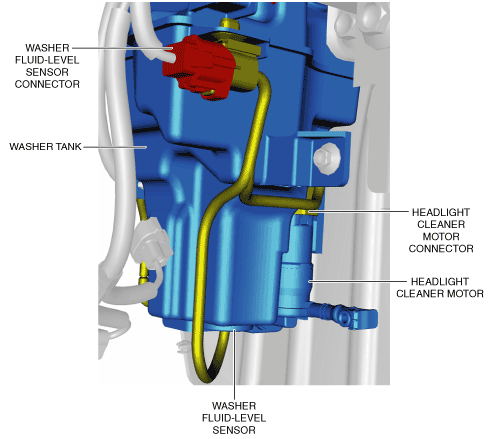

3.  Disconnect the connectors. (See WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION.)

aaxjjw00011927

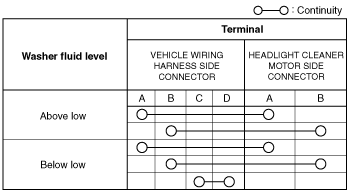

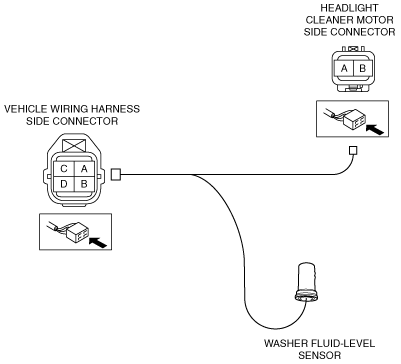

4.  Verify that the continuity between the washer fluid-level sensor terminals is as indicated in the table.

am2zzw00011636

am2zzw00011637

•  If not as indicated in the table, replace the washer fluid-level sensor. (See WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION.)
