CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY


id092000031600

1.  Disassemble in the order indicated in the table.

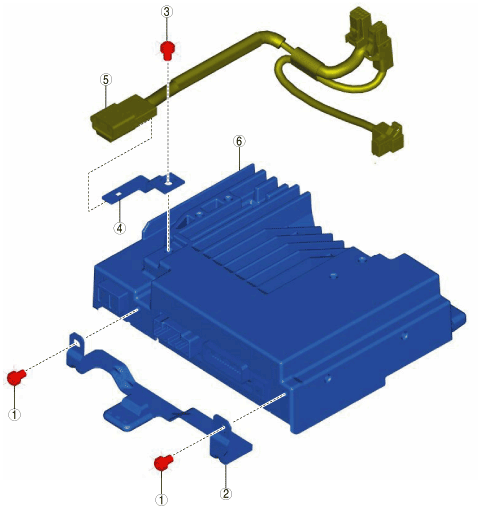

adejjw00008806

1
Screw A
2
Bracket A
3
Screw B
4
Bracket B
5
Short-cord
6
Connectivity master unit (CMU)

2.  Assemble in the reverse order of disassembly.


Short-cord Assembly Note

1.  When assembling the short-cord, press it into the groove of the CMU.

am2zzw00008316
