MICROPHONE REMOVAL/INSTALLATION

id092000801400

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

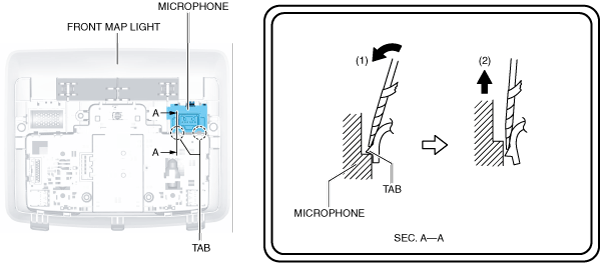

3.  While pressing the tabs of the voice recognition microphone in the direction of arrows (1) shown in the figure using a tape-wrapped flathead screwdriver, pull the voice recognition microphone in the direction of arrow (2) shown in the figure to detach the tabs of the voice recognition microphone from the front map light.

am2zzw00013119

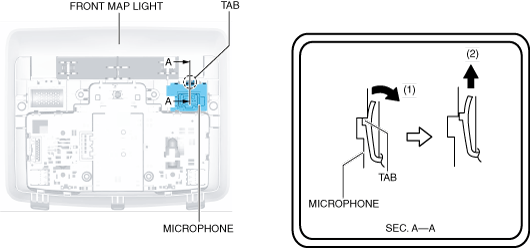

4.  While pulling the tab of the voice recognition microphone in the direction of arrow (1) shown in the figure, pull the voice recognition microphone in the direction of arrow (2) shown in the figure to detach the tab of the voice recognition microphone from the front map light.

am2zzw00013120

5.  Remove the microphone.

6.  Install in the reverse order of removal.
