•  Converts radio broadcast waves to electric signals and sends the signals to the audio unit.

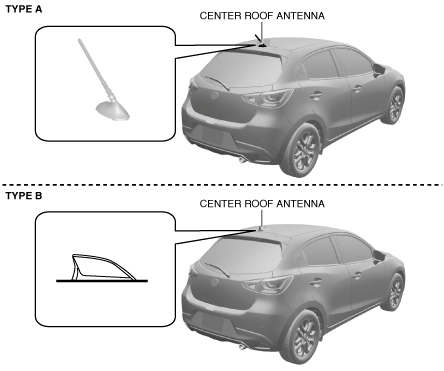

•  Two types of center roof antennas are available as follows:

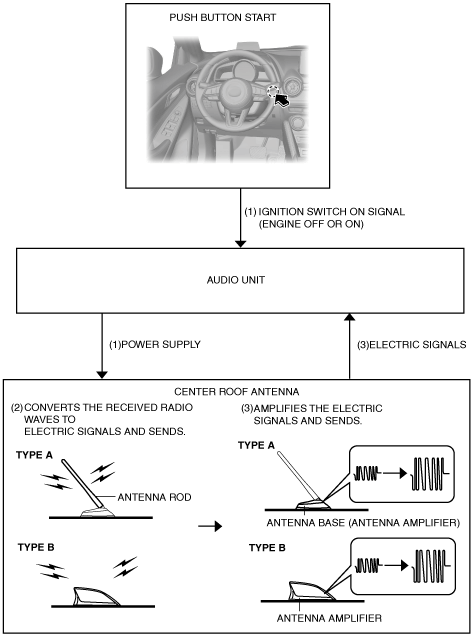

1.  When the ignition is switched to ACC or ON (engine off or on), power is supplied from the audio unit to the antenna amplifier inside the center roof antenna.

2.  The center roof antenna converts the received radio waves of a radio broadcast to an electric signal.

3.  The center roof antenna amplifies the converted electric signal using the antenna amplifier and sends the signal to the audio unit.

•  Not applicable
