CENTER ROOF ANTENNA [WITH CENTER DISPLAY]
id0920zz012000
Purpose, Function
• Converts radio broadcast waves to electric signals and sends the signals to the tuner and amplifier unit (TAU).
Construction

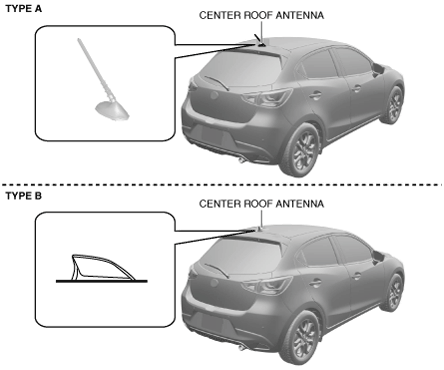

• Two types of center roof antennas are available as follows:
-
― Type A (with rod)
― Type B (without rod)
Operation
1. The TAU supplies (1) power to the antenna amplifier in the center roof antenna.
2. The center roof antenna converts (2) the received radio waves of a radio broadcast to an electric signal.
3. The center roof antenna amplifies the converted electric signal using the antenna amplifier and sends (3) the signal to the TAU.
Fail-safe
• Not applicable
