RELAY LOCATION
id092100800600

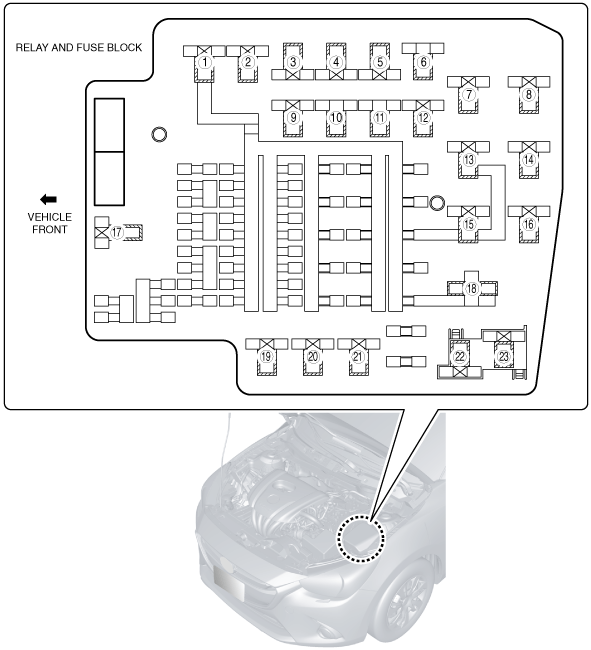

SKYACTIV-G 1.3, SKYACTIV-G 1.5 (PCM 200 Pin Type)
am2zzw00015042
|
|
1
|
IG1 relay
|
|
2
|
A/C relay
|
|
3
|
Front fog light relay
|
|
4
|
Headlight cleaner relay
|
|
5
|
Theft-deterrent relay
|
|
6
|
Brake light relay
|
|
7
|
Ignition relay (ACC_STAB)
|
|
8
|
Horn relay
|
|
9
|
Electric at oil pump relay
|
|
10
|
Wiper INT relay
|
|
11
|
Wiper HI relay
|
|
12
|
Steering warmer relay
|
|
13
|
Starter relay
|
|
14
|
Electric variable valve timing relay
|
|
15
|
ACC relay
|
|
16
|
Rear window defogger relay
|
|
17
|
Ignition relay (IG1_STAB)
|
|
18
|
Blower relay
|
|
19
|
Fuel pump relay
|
|
20
|
Fuel injector relay
|
|
21
|
Main relay
|
|
22
|
Cooling fan relay No.2
|
|
23
|
Cooling fan relay No.1
|
SKYACTIV-G 1.5 (PCM 186 Pin Type)
am2zzw00015042
|
|
1
|
IG1 relay
|
|
2
|
A/C relay
|
|
3
|
Front fog light relay
|
|
4
|
Headlight cleaner relay
|
|
5
|
Theft-deterrent relay
|
|
6
|
Brake light relay
|
|
7
|
Ignition relay (ACC_STAB)
|
|
8
|
Horn relay
|
|
9
|
Electric at oil pump relay
|
|
10
|
Wiper INT relay
|
|
11
|
Wiper HI relay
|
|
12
|
Steering warmer relay
|
|
13
|
Starter relay
|
|
14
|
Electric variable valve timing relay
|
|
15
|
ACC relay
|
|
16
|
Rear window defogger relay
|
|
17
|
Ignition relay (IG1_STAB)
|
|
18
|
Blower relay
|
|
19
|
Fuel pump relay
|
|
20
|
Sub relay
|
|
21
|
Main relay
|
|
22
|
Cooling fan relay No.2
|
|
23
|
Cooling fan relay No.1
|

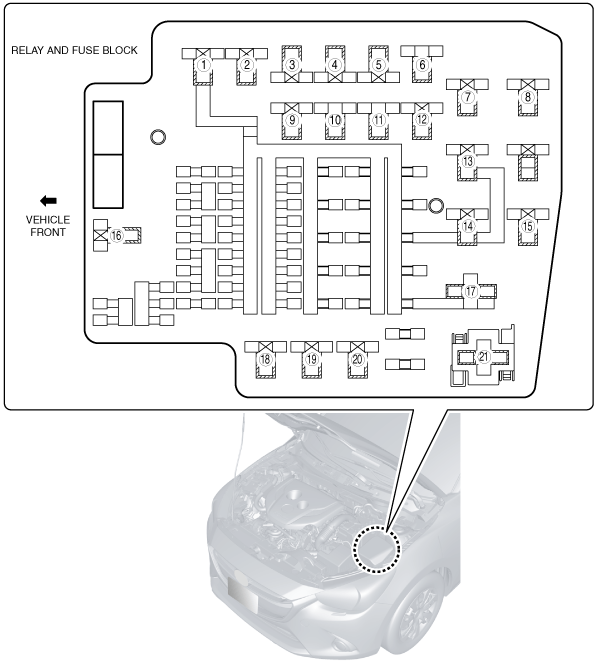

SKYACTIV-D 1.5
am2zzw00015043
|
|
1
|
IG1 relay
|
|
2
|
A/C relay
|
|
3
|
Front fog light relay
|
|
4
|
Headlight cleaner relay
|
|
5
|
Theft-deterrent relay
|
|
6
|
Brake light relay
|
|
7
|
Ignition relay (ACC_STAB)
|
|
8
|
Horn relay
|
|
9
|
Electric at oil pump relay
|
|
10
|
Wiper INT relay
|
|
11
|
Wiper HI relay
|
|
12
|
Steering warmer relay
|
|
13
|
Starter relay
|
|
14
|
ACC relay
|
|
15
|
Rear window defogger relay
|
|
16
|
Ignition relay (IG1_STAB)
|
|
17
|
Blower relay
|
|
18
|
Blow-by heater relay
|
|
19
|
Check connector
|
|
20
|
Main relay
|
|
21
|
Cooling fan relay
|
