POWER SYSTEMS

id092100960000


Outline

•  The power systems supply electrical power stored in the battery to the vehicle's electrical devices as their power supply.
•  Three types of electric power supply are used for the systems and parts depending on their usage.
―  Power is directly supplied from the battery
―  Power is supplied when ignition is switched ON (engine off)
―  Power is supplied when ignition is switched ON (engine on)

Specification

SKYACTIV-G 1.3, SKYACTIV-G 1.5

Component parts

Specification
Relay and fuse block
Wiring harness-integrated type
Fuse block
Wiring harness-integrated type
Main fuse
DCDC fuse capacity
50 A
EPAS fuse capacity
60 A
MAIN fuse capacity
200 A
STR fuse capacity
200 A
Accessory socket
Rated voltage
DC 12 V
Rated load
20 A

SKYACTIV-D 1.5

Component parts

Specification
Relay and fuse block
Wiring harness-integrated type
Fuse block
Wiring harness-integrated type
Main fuse
DCDC fuse capacity (With i-ELOOP)
200 A
GLOW fuse capacity
80 A
EPAS fuse capacity
60 A
PTC fuse capacity
100 A
MAIN fuse capacity
200 A
STR fuse capacity
250 A
Accessory socket
Rated voltage
DC 12 V
Rated load
20 A

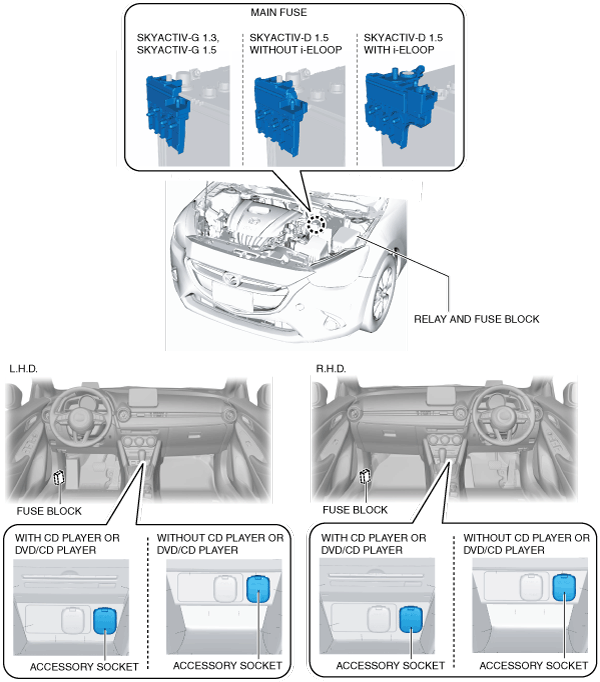

Structural View

am2zzn00004393
