RELAY AND FUSE BLOCK

id092100960100

Purpose

• Relays and fuses used by each system are grouped and housed together for smooth inspection and replacement servicing.

Function

• Relays and fuses used by each system are grouped and housed together.

Construction

• Relay and fuse block is positioned in the engine compartment.

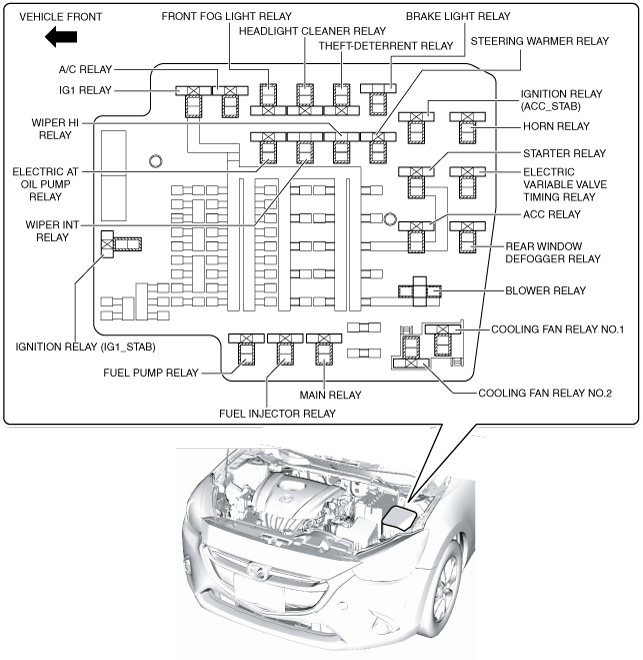

PCM (200 pin type)

am2zzn00004958

PCM (186 pin type)

am2zzn00004982

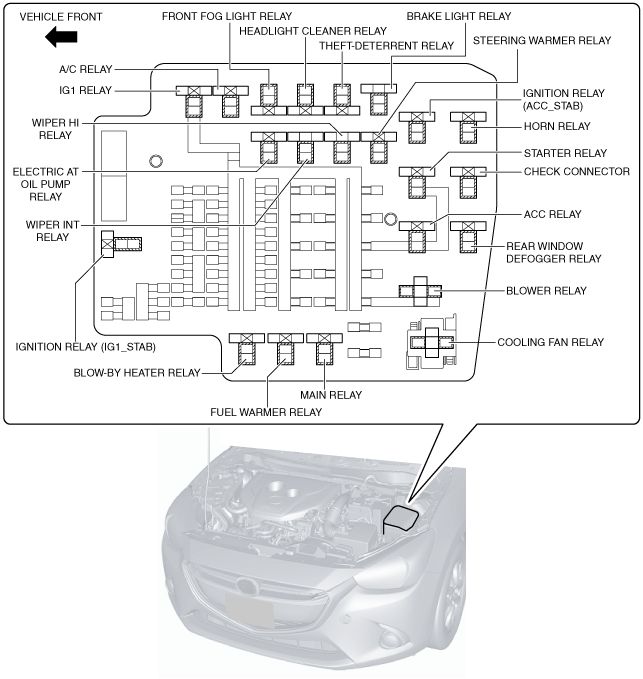

SKYACTIV-D 1.5

am2zzn00004960

Operation

Relay operation

1. When electric current flows to the coil, electromagnetic power is generated.

2. The switch is attracted by the generated electromagnetic power and switches on.

am2zzn00001948

Fuse operation

1. If electric current of the specified value or more flows to a fuse, the fuse generates heat and blows.

Note

• The time until a fuse blows depends on the amount of electrical current.

2. Current between the fuse and ground is interrupted.

Fail-safe

• Not applicable
