• If there are any non-illuminated area, replace the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
am2zzw00013650
|
INSTRUMENT CLUSTER INSPECTION
id092200010600
Speedometer Inspection (Analog Speedometer Type)
Using a speedometer tester
1. Adjust the tire pressure to the specification. (See WHEEL AND TIRE SPECIFICATION.)
2. Using a speedometer tester, verify that the values are as indicated in the table.
|
Speedometer indication (km/h) |
Speedometer tester indication (km/h) |
|---|---|
|
20
|
15.90—19.90
|
|
40
|
35.40—39.40
|
|
60
|
55.00—59.00
|
|
80
|
74.50—78.50
|
|
100
|
94.10—98.10
|
|
120
|
112.25—117.75
|
|
140
|
131.40—137.40
|
|
160
|
151.00—157.00
|
|
180
|
170.60—176.60
|
|
200
|
190.20—196.20
|
Using the M-MDS
1. Connect the M-MDS to the DLC-2.
2. After vehicle identification, select the following from the M-MDS initialization screen.
3. Using the simulation function SPEEDOMTR, verify that the values are as indicated in the table.
|
M-MDS display |
Speedometer display |
|---|---|
|
60 km/h
|
Speedometer needle moves to approx. 58—62 km/h {37—38 mph}.
|
|
120 km/h
|
Speedometer needle moves to approx. 117-123 km/h {72.8—76.4 mph}.
|
|
Off
|
Speedometer needle moves to the bottommost position.
|
Speedometer Inspection (Digital Speedometer Type)
1. Adjust the tire pressure to the specification. (See WHEEL AND TIRE SPECIFICATION.)
2. Using a speedometer tester, verify that the values are as indicated in the table.
|
Speedometer indication (km/h) |
Speedometer tester indication (km/h) |
|---|---|
|
20
|
20—23
|
|
40
|
40—43
|
|
60
|
61—64
|
|
80
|
81—84
|
|
100
|
102—104
|
|
120
|
122—125
|
|
140
|
142—145
|
|
160
|
163—166
|
|
180
|
183—186
|
|
200
|
204—206
|
|
220
|
224—227
|
|
240
|
244—247
|
Tachometer Inspection (Analog Tachometer type)
1. Connect the M-MDS to the DLC-2.
2. After vehicle identification, select the following from the M-MDS initialization screen.
3. Using the simulation function TACHOMTR, verify that the values are as indicated in the table.
|
M-MDS display |
Tachometer display |
|---|---|
|
3000 RPM
|
Tachometer needle moves to approx. 3,050 rpm.
|
|
6000 RPM
|
Tachometer needle moves to approx. 6,100 rpm.
|
|
Off
|
Tachometer needle moves to bottommost position.
|

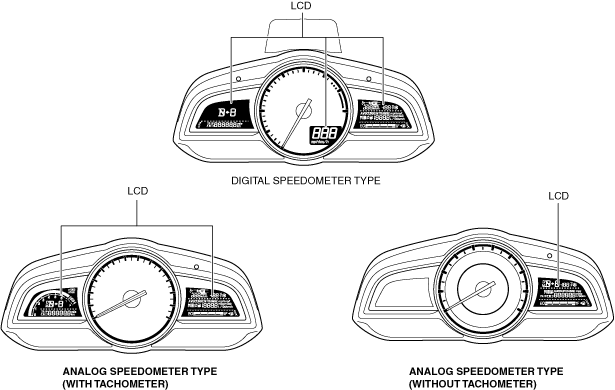

LCD Inspection
1. Connect the M-MDS to the DLC-2.
2. After vehicle identification, select the following from the M-MDS initialization screen.
3. Using the simulation function LCD_SEG, verify that the LCD is illuminated.
am2zzw00013650
|
Warning/Indicator Light Illumination Inspection
1. Connect the M-MDS to the DLC-2.
2. After vehicle identification, select the following from the M-MDS initialization screen.
3. Using the simulation function WL+IL, verify that the warning/indicator lights in the following table are illuminated.
Digital speedometer type
am2zzn00004776
|
|
No |
Warning light/Indicator light |
Name |
Message is displayed in center display when warning/indicator light turns on/flashes |
Comment |
Turns on when IG-ON |
|---|---|---|---|---|---|
|
1
|
 |
i-ELOOP indicator light
|
X
|
With i-ELOOP
|
—
|
|
2
|
 |
Select mode indicator light
|
—
|
SKYACTIV-G 1.3, SKYACTIV-G 1.5
|
—
|
|
3
|
 |
i-stop warning light (amber)/i-stop indicator light (green)
|
X
|
With i-stop
|
X
|
|
4
|
 |
Lights-on indicator light
|
—
|
—
|
—
|
|
5
|
 |
Shift position indicator light/gear position indicator
|
—
|
ATX
|
—
|
 |
Gear shift indicator
|
—
|
MTX
|
—
|
|
|
6
|
 |
Fog light indicator light
|
—
|
With front fog lights
|
—
|
|
7
|
 |
Adaptive LED headlights indicator light (green)/adaptive LED headlights warning light (amber)
|
X
|
With adaptive LED headlights
|
X
|
|
High beam control (HBC) system warning light (amber)/indicator light (green)
|
X
|
With HBC System
|
X
|
||
|
8
|
 |
Master warning light
|
X
|
—
|
X
|
|
9
|
 |
KEY warning light (red)/KEY indicator light (green)
|
X
|
—
|
—
|
|
10
|
 |
Engine oil warning light
|
X
|
—
|
X
|
|
11
|
 |
Seat belt warning light
|
—
|
—
|
—
|
|
12
|
 |
Direction indicator/hazard warning indicator lights
|
—
|
—
|
—
|
|
13
|
 |
Door-ajar warning light
|
—
|
—
|
—
|
|
14
|
 |
Headlight high-beam indicator light
|
—
|
—
|
—
|
|
15
|
 |
TCS/DSC indicator light
|
X
|
—
|
X
|
|
16
|
 |
ABS warning light
|
X
|
—
|
X
|
|
17
|
 |
Diesel particulate filter indicator light
|
X
|
SKYACTIV-D 1.5
|
X
|
|
18
|
 |
BSM OFF indicator light
|
X
|
With BSM
|
X
|
|
19
|
 |
LDWS OFF indicator light
|
—
|
With LDWS
|
X
|
|
20
|
 |
Cruise main indicator light (white)/cruise set indicator light (green)
|
—
|
With cruise control system
|
—
|
 |
Mazda Radar Cruise Control (MRCC) warning light (amber)/Mazda Radar Cruise Control (MRCC) indicatorlight (green)
|
X
|
With MRCC
|
X
|
|
|
21
|
 |
Adjustable speed limiter main indicator light (amber)/adjustable speed limiter set indicator light (green)
|
—
|
With adjustable speed limiter
|
—
|
|
22
|
 |
Low fuel warning light
|
X
|
—
|
—
|
|
23
|
 |
Brake system warning light
|
X
|
—
|
X
|
|
24
|
 |
Low washer fluid level warning light
|
X
|
With washer fluid-level sensor
|
—
|
|
25
|
 |
Tire pressure monitoring system warning light
|
X
|
With TPMS
|
X
|
|
26
|
 |
• Smart brake support/smart city brake support (SBS/SCBS) indicator light (red)
• Smart brake support/smart city brake support (SBS/SCBS) warning light (amber)
|
X
|
With SBS/SCBS
|
X
|
|
27
|
 |
Smart brake support/smart city brake support (SBS/SCBS) OFF indicator light
|
—
|
With SBS/SCBS
|
X
|
|
28
|
 |
Glow indicator light
|
X
|
SKYACTIV-D 1.5
|
X
|
|
29
|
 |
Check engine light
|
X
|
—
|
X
|
|
30
|
 |
DSC OFF indicator light
|
—
|
—
|
X
|
|
31
|
 |
Wrench indicator light
|
—
|
—
|
X
|
|
32
|
 |
Security indicator light
|
—
|
—
|
X
|
|
33
|
 |
Charging system warning light
|
X
|
—
|
X
|
|
34
|
 |
Air bag/seat belt pretensioner system warning light
|
X
|
—
|
X
|
|
35
|
 |
Automatic transaxle warning light
|
X
|
ATX
|
X
|
|
36
|
 |
Power steering malfunction indicator light
|
X
|
—
|
X
|
|
37
|
 |
Rear fog light indicator light
|
—
|
With rear fog light
|
—
|
|
38
|
 |
Lane departure warning system (LDWS) warning light
|
X
|
With LDWS
|
X
|
|
39
|
 |
LED headlight warning light
|
—
|
With headlight (LED type)
|
X
|
|
40
|
 |
Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)
|
X
|
—
|
X
|
Analog speedometer type (with tachometer)
am2zzn00004777
|
|
No |
Warning light/Indicator light |
Name |
Message is displayed in center display when warning/indicator light turns on/flashes |
Comment |
Turns on when IG-ON |
|---|---|---|---|---|---|
|
1
|
|
i-ELOOP indicator light
|
X
|
With i-ELOOP
|
—
|
|
2
|
|
Select mode indicator light
|
—
|
SKYACTIV-G 1.3, SKYACTIV-G 1.5
|
—
|
|
3
|
|
i-stop warning light (amber)/i-stop indicator light (green)
|
X
|
With i-stop
|
X
|
|
4
|
|
Shift position indicator light/gear position indicator
|
—
|
ATX
|
—
|
|
Gear shift indicator
|
—
|
MTX
|
—
|
|
|
5
|
|
Adaptive LED headlights indicator light (green)/adaptive LED headlights warning light (amber)
|
X
|
With adaptive LED headlights
|
X
|
|
High beam control (HBC) system warning light (amber)/indicator light (green)
|
X
|
With HBC System
|
X
|
||
|
6
|
|
Power steering malfunction indicator light
|
X
|
—
|
X
|
|
7
|
|
Automatic transaxle warning light
|
X
|
ATX
|
X
|
|
8
|
|
Charging system warning light
|
X
|
—
|
X
|
|
9
|
|
Direction indicator/hazard warning indicator lights
|
—
|
—
|
—
|
|
10
|
|
Air bag/seat belt pretensioner system warning light
|
X
|
—
|
X
|
|
11
|
|
Seat belt warning light
|
—
|
—
|
—
|
|
12
|
|
Door-ajar warning light
|
—
|
—
|
—
|
|
13
|
|
Engine oil warning light
|
X
|
—
|
X
|
|
14
|
|
Headlight high-beam indicator light
|
—
|
—
|
—
|
|
15
|
|
TCS/DSC indicator light
|
X
|
—
|
X
|
|
16
|
|
ABS warning light
|
X
|
—
|
X
|
|
17
|
|
• Smart brake support/smart city brake support (SBS/SCBS) indicator light (red)
• Smart brake support/smart city brake support (SBS/SCBS) warning light (amber)
|
X
|
With SBS/SCBS
|
X
|
|
18
|
|
Low washer fluid level warning light
|
X
|
With washer fluid-level sensor
|
—
|
|
19
|
 |
120 km/h warning light
|
—
|
With 120 km/h warning light
|
X
|
|
20
|
|
Adjustable speed limiter main indicator light (amber)/adjustable speed limiter set indicator light (green)
|
—
|
With adjustable speed limiter
|
—
|
|
21
|
|
BSM OFF indicator light
|
X
|
With BSM
|
X
|
|
22
|
|
Brake system warning light
|
X
|
—
|
X
|
|
23
|
|
Low fuel warning light
|
X
|
—
|
—
|
|
24
|
|
LDWS OFF indicator light
|
—
|
With LDWS
|
X
|
|
25
|
|
Cruise main indicator light (white)/cruise set indicator light (green)
|
—
|
With cruise control system
|
—
|
|
26
|
|
Tire pressure monitoring system warning light
|
X
|
With TPMS
|
X
|
|
27
|
|
Diesel particulate filter indicator light
|
X
|
SKYACTIV-D 1.5
|
X
|
|
28
|
|
Smart brake support/smart city brake support (SBS/SCBS) OFF indicator light
|
—
|
With SBS/SCBS
|
X
|
|
29
|
|
DSC OFF indicator light
|
—
|
—
|
X
|
|
30
|
|
Wrench indicator light
|
—
|
—
|
X
|
|
31
|
|
Security indicator light
|
—
|
—
|
X
|
|
32
|
|
KEY warning light (red)/KEY indicator light (green)
|
X
|
—
|
—
|
|
33
|
|
Check engine light
|
X
|
—
|
X
|
|
34
|
|
Glow indicator light
|
X
|
SKYACTIV-D 1.5
|
X
|
|
35
|
 |
Master warning light
|
X
|
—
|
X
|
|
36
|
|
Lane departure warning system (LDWS) warning light
|
X
|
With LDWS
|
X
|
|
37
|
|
Fog light indicator light
|
—
|
With front fog lights
|
—
|
|
38
|
|
Rear fog light indicator light
|
—
|
With rear fog light
|
—
|
|
39
|
|
Lights-on indicator light
|
—
|
—
|
—
|
|
40
|
|
LED headlight warning light
|
—
|
With headlight (LED type)
|
—
|
|
41
|
|
Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)
|
X
|
—
|
X
|
Analog speedometer type (without tachometer)
am2zzn00004778
|
|
No |
Warning light/Indicator light |
Name |
Message is displayed in center display when warning/indicator light turns on/flashes |
Comment |
Turns on when IG-ON |
|---|---|---|---|---|---|
|
1
|
|
i-ELOOP indicator light
|
X
|
With i-ELOOP
|
—
|
|
2
|
|
Select mode indicator light
|
—
|
SKYACTIV-G 1.3, SKYACTIV-G 1.5
|
—
|
|
3
|
|
i-stop warning light (amber)/i-stop indicator light (green)
|
X
|
With i-stop
|
X
|
|
4
|
|
Lights-on indicator light
|
—
|
—
|
—
|
|
5
|
|
Fog light indicator light
|
—
|
With front fog lights
|
—
|
|
6
|
|
Adaptive LED headlights indicator light (green)/adaptive LED headlights warning light (amber)
|
X
|
With adaptive LED headlights
|
X
|
|
High beam control (HBC) system warning light (amber)/indicator light (green)
|
X
|
With HBC System
|
X
|
||
|
7
|
|
Power steering malfunction indicator light
|
X
|
—
|
X
|
|
8
|
|
Automatic transaxle warning light
|
X
|
ATX
|
X
|
|
9
|
|
Charging system warning light
|
X
|
—
|
X
|
|
10
|
|
Direction indicator/hazard warning indicator lights
|
—
|
—
|
—
|
|
11
|
|
Air bag/seat belt pretensioner system warning light
|
X
|
—
|
X
|
|
12
|
|
Seat belt warning light
|
—
|
—
|
—
|
|
13
|
|
Door-ajar warning light
|
—
|
—
|
—
|
|
14
|
|
Engine oil warning light
|
X
|
—
|
X
|
|
15
|
|
Headlight high-beam indicator light
|
—
|
—
|
—
|
|
16
|
|
TCS/DSC indicator light
|
X
|
—
|
X
|
|
17
|
|
ABS warning light
|
X
|
—
|
X
|
|
18
|
|
Shift position indicator light/gear position indicator
|
—
|
ATX
|
—
|
|
Gear shift indicator
|
—
|
MTX
|
—
|
|
|
19
|
|
120 km/h warning light
|
—
|
With 120 km/h warning light
|
X
|
|
20
|
|
Adjustable speed limiter main indicator light (amber)/adjustable speed limiter set indicator light (green)
|
—
|
With adjustable speed limiter
|
—
|
|
21
|
|
BSM OFF indicator light
|
X
|
With BSM
|
X
|
|
22
|
|
Brake system warning light
|
X
|
—
|
X
|
|
23
|
|
Low fuel warning light
|
X
|
—
|
—
|
|
24
|
|
LDWS OFF indicator light
|
—
|
With LDWS
|
X
|
|
25
|
|
Cruise main indicator light (white)/cruise set indicator light (green)
|
—
|
With cruise control system
|
—
|
|
26
|
|
Tire pressure monitoring system warning light
|
X
|
With TPMS
|
X
|
|
27
|
|
Low washer fluid level warning light
|
X
|
With washer fluid-level sensor
|
—
|
|
28
|
|
Diesel particulate filter indicator light
|
X
|
SKYACTIV-D 1.5
|
X
|
|
29
|
|
Smart brake support/smart city brake support (SBS/SCBS) OFF indicator light
|
—
|
With SBS/SCBS
|
X
|
|
30
|
|
• Smart brake support/smart city brake support (SBS/SCBS) indicator light (red)
• Smart brake support/smart city brake support (SBS/SCBS) warning light (amber)
|
X
|
With SBS/SCBS
|
X
|
|
31
|
|
DSC OFF indicator light
|
—
|
—
|
X
|
|
32
|
|
Wrench indicator light
|
—
|
—
|
X
|
|
33
|
|
Security indicator light
|
—
|
—
|
X
|
|
34
|
|
KEY warning light (red)/KEY indicator light (green)
|
X
|
—
|
—
|
|
35
|
|
Check engine light
|
X
|
—
|
X
|
|
36
|
|
Glow indicator light
|
X
|
SKYACTIV-D 1.5
|
X
|
|
37
|
|
Master warning light
|
X
|
—
|
X
|
|
38
|
|
Lane departure warning system (LDWS) warning light
|
X
|
With LDWS
|
X
|
|
39
|
|
Rear fog light indicator light
|
—
|
With rear fog light
|
—
|
|
40
|
|
LED headlight warning light
|
—
|
With headlight (LED type)
|
—
|
|
41
|
|
Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)
|
X
|
—
|
X
|
Alarm Inspection
1. Connect the M-MDS to the DLC-2.
2. After vehicle identification, select the following from the M-MDS initialization screen.
3. Using the simulation function ALARM, verify that the buzzer sounds.
