TRIP COMPUTER INFORMATION SYSTEM
id092200018000
Outline
• The trip computer system displays instantaneous fuel economy, average fuel economy (with tachometer), remaining travel distance, and average vehicle speed (with tachometer).
Function
• The instrument cluster controls the trip computer system based on the following signals.
|
Signal name
|
Sending module/part name
|
Communication method
|
|
Vehicle speed signal
|
PCM
|
HS-CAN
|
|
Fuel injection amount signal
|
|
Traveled distance signal
|
|
Steering switch operation signal (with tachometer)
|
Start stop unit
|
Instantaneous fuel economy calculation function
-
• The instrument cluster calculates the instantaneous fuel economy based on the fuel injection amount and traveled distance over the past
2 s when the vehicle speed is at the set value or more. In addition, the calculation results are updated
every 2 s.
Instantaneous fuel economy formula
• When there is no fuel consumption, such as during engine braking, <0.0 L/100 km> is displayed.

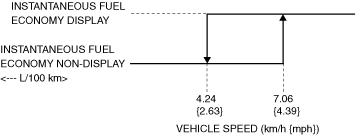

• The instantaneous fuel economy is displayed when the vehicle speed reaches
7.06 km/h {4.39 mph} or more, and <--- L/100 km> is displayed when the vehicle speed decreases to
4.24 km/h {2.63 mph} or less.
Average fuel economy calculation function (with tachometer)
-
• The instrument cluster calculates the average fuel economy based on the traveled distance and fuel consumption from connecting the battery or resetting the average fuel economy. In addition, the calculation results are updated every minute.
Average fuel economy formula
• When the cumulative traveled distance is 0 km {0 mile}, <99.9 L/100 km> is displayed.
• If the INFO button is pressed for 1.5 s or more while the average fuel economy is displayed, the cumulative fuel economy and cumulative traveled distance data are reset.
• If tripmeter A is reset, the average fuel economy is also reset.
• During the 1 min period after the data has been reset, <--- L/100 km> is displayed.
Remaining travel distance calculation function
-
• The instrument cluster calculates the remaining travel distance based on the instantaneous fuel economy at
0.1 km {0.06 mile} prior, cumulative fuel economy, and the fuel tank level. In addition, the calculation results are updated
every 1 s.
Remaining travel distance formula
• The instrument cluster displays <0 km> when the fuel tank level is 6 L {2 US gal, 1 Imp gal}.
Average vehicle speed calculation function (with tachometer)
-
• The instrument cluster calculates the average vehicle speed based on the cumulative traveled distance and cumulative traveled time from connecting the battery or resetting the average vehicle speed. In addition, the calculation results are updated
every 10 s.
Average vehicle speed formula
• If the INFO button is pressed for 1.5 s or more while the average vehicle speed is displayed, the average vehicle speed (cumulative traveled distance and cumulative traveled time data) is reset.
• During the 1 min period after the data has been reset, <--- km/h> is displayed.

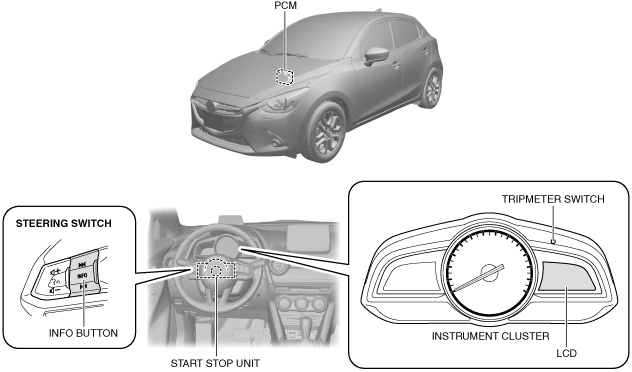

Structural View

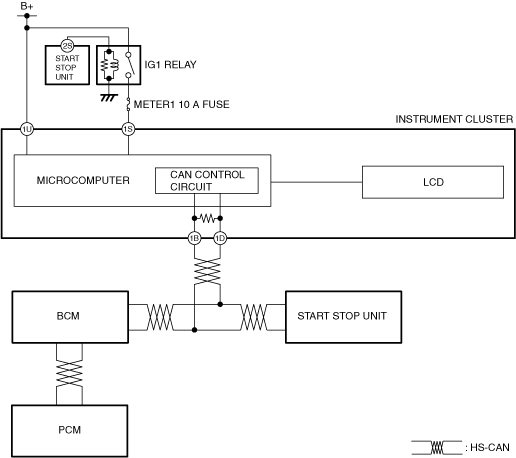

System Wiring Diagram
Operation
1. When the ignition is switched ON (engine on), the instrument cluster receives (1) the vehicle speed signal, fuel injection amount signal, and traveled distance signal from the PCM, and the steering switch operation signal (with tachometer) from the start stop unit via CAN communication.
2. The instrument cluster calculates (2) the instantaneous fuel economy and others based on the received data.
3. The instrument cluster displays (3) the calculated results in the LCD.
Trip computer display switching operation
-

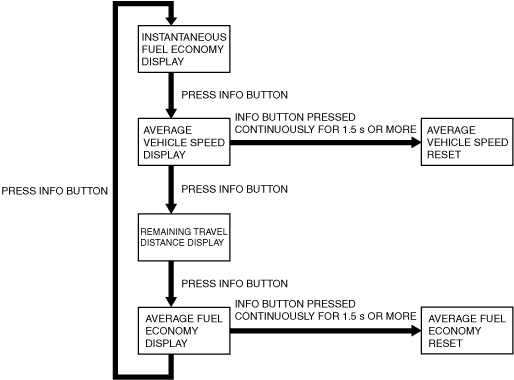

Vehicles with tachometer
-
• The instrument cluster switches the trip computer display content as follows based on the steering switch operation signal from the start stop unit.

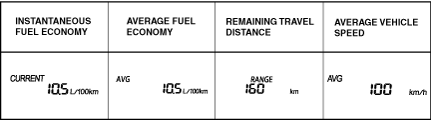

Display screen table
-

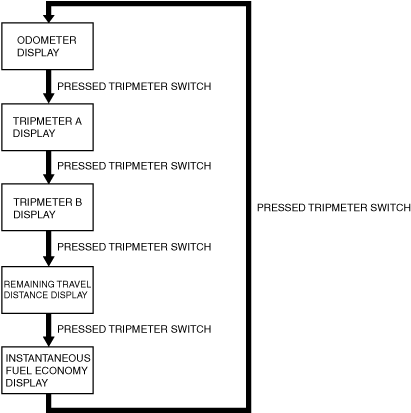

Vehicles without tachometer
-
• When the tripmeter switch is pressed, the instrument cluster switches the tripmeter display content as follows:
Display screen table
Fail-safe
• Not applicable
