AMBIENT TEMPERATURE DISPLAY

id092200021500

Purpose

• The ambient temperature display notifies the driver of the ambient temperature.

Function

Celsius display

• The instrument cluster displays the ambient temperature based on the ambient temperature signal sent from the PCM via CAN communication.

• The ambient temperature is displayed within -40—70 °C. -40 °C is displayed if the ambient temperature is -40 °C or less, 70 °C is displayed if 70 °C or more.

Construction

• The ambient temperature is displayed on the LCD in the instrument cluster.

am2zzn00004336

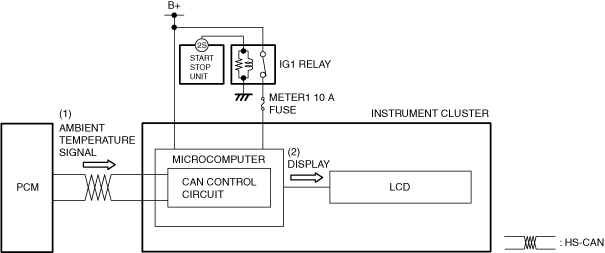

Operation

1. When the ignition is switched ON (engine off or on), the instrument cluster receives (1) an ambient temperature signal from the PCM.

2. The instrument cluster displays (2) the ambient temperature in the LCD based on the ambient temperature signal.

am2zzn00004337

Fail-safe

• Not applicable
