LOW FUEL WARNING LIGHT

id092200023000


Purpose

•  The low fuel warning light warns the driver that the remaining fuel level is low.

Function

•  The instrument cluster calculates the remaining fuel amount based on the following signals, and if the calculated remaining fuel amount is approx. 9 L {2 US gal, 2 Imp gal} (fuel gauge indicates remaining 2 segments), it turns the low fuel warning light on.

Signal name

Sending module/part name

Communication method
Fuel gauge sender unit voltage signal
BCM
HS-CAN
Fuel injection amount signal
PCM
Vehicle speed signal


Construction

•  The instrument cluster microcomputer controls the turning on/off of the low fuel warning light based on the remaining fuel amount calculation that is calculated by the instrument cluster.
•  The low fuel warning light is built into the instrument cluster.
am2zzn00004347
•  For vehicles with the center display, a warning message in the center display is displayed when the low fuel warning light is turned on. For the message content and verification method, refer to [CENTER DISPLAY]. (See CENTER DISPLAY [WITH CENTER DISPLAY].)

Operation

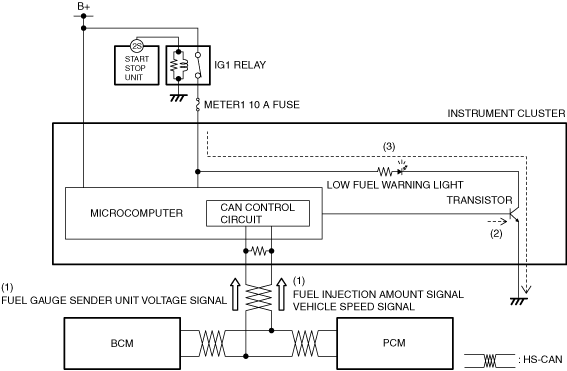

1.  When the ignition is switched ON (engine off or on), the instrument cluster receives (1) a fuel gauge sender unit voltage signal from the BCM, and a fuel injection amount and vehicle speed signals from the PCM via CAN communication.

2.  The instrument cluster turn the transistor on (2) if the remaining fuel amount calculated based on each signal is approx. 9 L {2 US gal, 2 Imp gal}.

3.  When the transistor turns on, a ground circuit with the low fuel warning light is established and the low fuel warning light turns on (3).

am2zzn00004348

Fail-safe

•  Not applicable
