ULTRASONIC SENSOR REMOVAL/INSTALLATION

id092200023200

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(2)  Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)

(3)  Rear bumper (See REAR BUMPER REMOVAL.) (See REAR BUMPER INSTALLATION.)

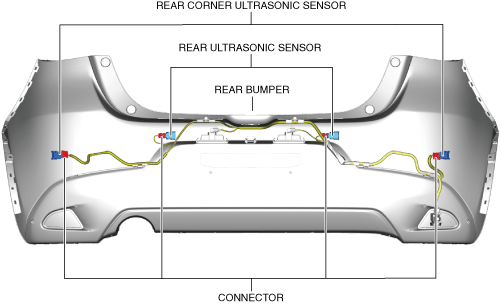

3.  Disconnect the connector.

am2zzw00014470

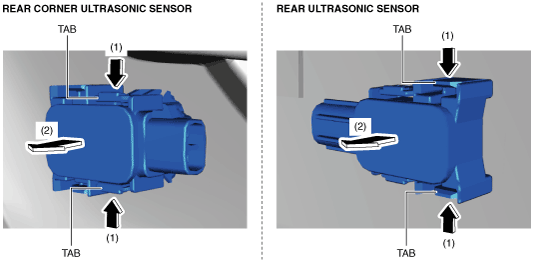

4.  While pressing the rear ultrasonic sensor tabs in the direction of arrows (1) shown in the figure, pull the rear ultrasonic sensor in the direction of arrow (2) to detach the rear ultrasonic sensor tabs from the bracket.

ac9wzw00004021

5.  Remove the rear ultrasonic sensor.

6.  While pressing the bracket tabs in the direction of arrows (1) shown in the figure, push the bracket in the direction of arrow (2) to detach the bracket tabs from the rear bumper.

ac9uuw00006763

7.  Remove the bracket.

8.  Install in the reverse order of removal.
