INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE

id092200033600

Caution
•  The personalization feature may not be set correctly if [Not equipped] is selected in the setting displayed on the M-MDS. Do not select [Not equipped] in the setting displayed on the M-MDS.

Turn And Hazard Indicator Alarm


Using M-MDS

1.  Connect the M-MDS to the DLC-2.

2.  After vehicle identification, select the following from the M-MDS initialization screen.

(1)  “Module programming”
(2)  “Programmable Parameters”

3.  Select menu in the “IC”.

4.  Select an item name, and than select option.

Mazda Modular Diagnostic System (M-MDS) display

Function

Initial setting

Setting contents

Control unit
Turn Signal Volume.
The volume of the turn and hazard indicator alarm can be changed.
High
Low / High
Instrument cluster

*1  :Without center display


Using center display

•  For the setting procedure of the personalization features using the center display, refer to "CENTER DISPLAY PERSONALIZATION FEATURES". (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)


Lights-on Reminder Warning Alarm


Using M-MDS

1.  Connect the M-MDS to the DLC-2.

2.  After vehicle identification, select the following from the M-MDS initialization screen.

(1)  “Module programming”
(2)  “Programmable Parameters”

3.  Select menu in the “IC”.

4.  Select an item name, and than select option.

Mazda Modular Diagnostic System (M-MDS) display

Function

Initial setting

Setting contents

Control unit
Lights-on Reminder Volume.
The volume for the lights-on reminder warning alarm can be changed.
High or Off*1
OFF / Low / High
Instrument cluster

*1  :The setting of the lights-on reminder can be changed with the time setting of auto light off system set to Off.


Using center display

•  For the setting procedure of the personalization features using the center display, refer to "CENTER DISPLAY PERSONALIZATION FEATURES". (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)


Temperature

Note
•  When the ambient temperature display is switched, the set A/C cabin temperature display is also changed.

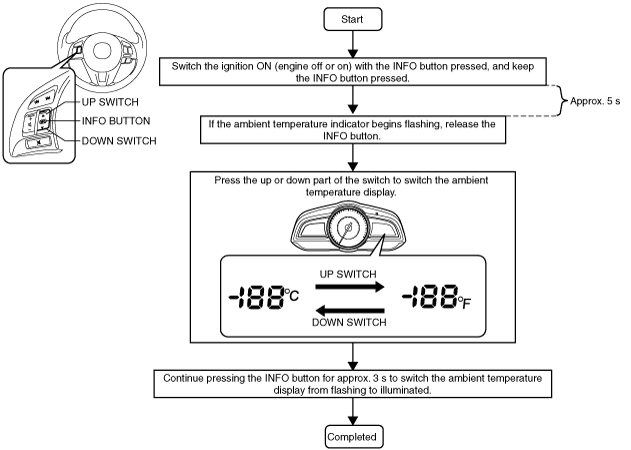

Using instrument cluster (without center display)

am3uuw00010064


Using center display

•  For the setting procedure of the personalization features using the center display, refer to "CENTER DISPLAY PERSONALIZATION FEATURES". (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)
