CONTROL SYSTEM


id094000001100


Outline

•  A BCM has been adopted which performs input controls for the headlights, map light, rear wiper, front washer, and rear washer, and small load input/output controls for the door latch switches, windshield wipers and turn lights.
•  An electrical supply unit (ESU) has been adopted which performs high-load output control of the headlights, map light, door lock actuators, rear wiper, front washer, and rear washer.

Structural View

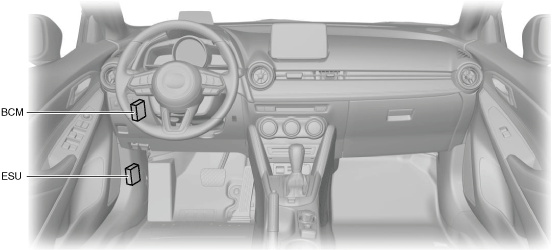

L.H.D.

am2zzn00004850

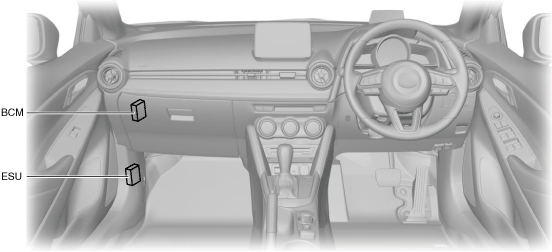

R.H.D.

am2zzn00004440
