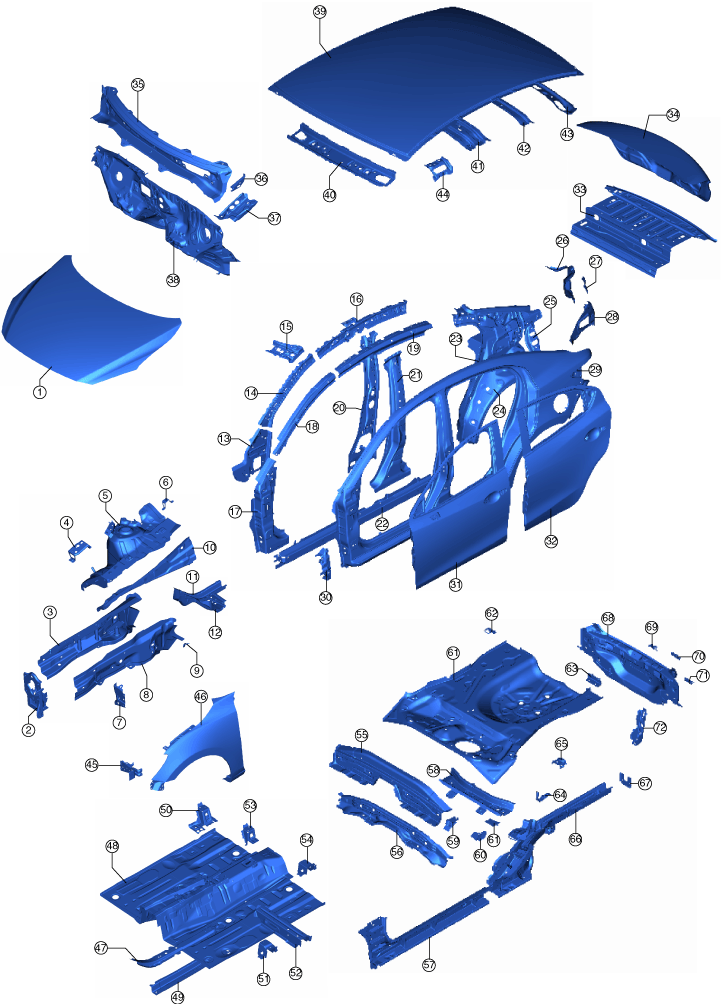

BODY COMPONENTS CONSTRUCTION [CONSTRUCTION]

id098007739700


4SD


VIN: MMZ**, MM0**, MM6**, MM7**, MM8**

am2zzb00000775

x:Applied
-:Not applied

No.

Part name

Ultra high-tension steel

High-tension steel

Rust proof steel

Thickness (mm) {in}
1
Bonnet (outer panel)

X
X
0.60
{0.024}
2
Bumper bracket component
Bumper bracket
X

X
1.60
{0.0630}
Bumper bracket side


X
1.80
{0.0709}
Suspension mounting reinforcement

X
X
1.40
{0.0551}
Outer frame reinforcement

X
X
0.90
{0.035}
3
Front side frame (inner)
X

X
1.20
{0.0472}
4
Front fender bracket


X
0.80
{0.031}
5
Wheel apron panel component
Apron panel (front)


X
1.00
{0.0394}
Apron reinforcement No.3

X
X
0.90
{0.035}
Apron reinforcement (upper)


X
0.80
{0.031}
Suspension housing (upper)

X
X
1.80
{0.0709}
Apron reinforcement No.1


X
1.20
{0.0472}
Apron reinforcement No.2


X
0.80
{0.031}
Suspension housing (lower)


X
0.70
{0.03}
Apron reinforcement gusset


X
1.00
{0.0394}
Wheel apron (front) reinforcement



1.20
{0.0472}
Wheel apron (rear) reinforcement


X
1.40
{0.0551}
6
Front fender junction


X
0.80
{0.031}
7
Light bracket


X
1.60
{0.0630}
8
Front side frame (outer)
X

X
1.00
{0.0394}
9
Brake hose bracket



2.00
{0.0787}
10
Cowl side reinforcement (Front) component
Cowl side reinforcement (front)


X
0.80
{0.031}
Light bracket (rear)
X

X
1.00
{0.0394}
11
Front frame (rear) component
Front frame (rear)
X

X
1.40
{0.0551}
Lower arm bracket


X
1.60
{0.0630}
12
Torque box
Front

X
X
1.60
{0.0630}
Rear
X

X
0.80
{0.031}
13
Hinge pillar (inner)
X

X
0.90
{0.035}
14
Front pillar (inner)
X


1.20
{0.0472}
15
Front pillar reinforcement (upper)


X
0.65
{0.026}
16
Roof rail (inner)
X


0.90
{0.035}
17
Hinge reinforcement component
Hinge reinforcement
X


1.00
{0.0394}
Front pillar (inner) reinforcement
X


1.40
{0.0551}
18
Front pillar reinforcement
X


1.40
{0.0551}
19
Roof rail reinforcement
X


1.00
{0.0394}
20
Center pillar (inner)
Upper

X

0.70
{0.03}
Lower

X
X
1.20
{0.0472}
21
Center pillar reinforcement
Upper
X


2.00
{0.0787}
Lower
X


2.00
{0.0787}
22
Side sill reinforcement
X

X
1.40
{0.0551}
23
Rear pillar (inner) component
Rear pillar (inner)


X
0.65
{0.026}
Wheel housing (inner)


X
0.60
{0.024}
Seal plate

X
X
0.60
{0.024}
24
Wheel housing (outer)


X
0.60
{0.024}
25
Suspension housing reinforcement

X
X
0.60
{0.024}
26
Rear fender rain rail component
Rear fender rain rail


X
0.65
{0.026}
Corner plate


X
0.65
{0.026}
27
Light bracket (rear)


X
0.65
{0.026}
28
Rear fender panel (lower)


X
0.65
{0.026}
29
Side frame panel (outer)


X
0.65
{0.026}
30
Cowl side reinforcement (rear)
X

X
1.40
{0.0551}
31
Front door panel (outer)

X
X
0.65
{0.026}
32
Rear door panel (outer)

X
X
0.60
{0.024}
33
Package tray
Package member (front)



1.00
{0.0394}
Package reinforcement



0.55
{0.022}
Package tray



0.55
{0.022}
Package member


X
0.60
{0.024}
34
Trunk lid
Outer panel


X
0.65
{0.026}
Inner panel


X
0.60
{0.024}
End panel


X
0.60
{0.024}
35
Dash panel (upper)


X
0.65
{0.026}
36
Cowl plate
X

X
1.00
{0.0394}
37
Wiper bracket

X
X
1.40
{0.0551}
38
Dash panel (lower)

X
X
1.00
{0.0394}
39
Roof panel



0.65
{0.026}
40
Front header


X
0.65
{0.026}
41
Roof reinforcement No.1
X


0.70
{0.028}
42
Roof reinforcement No.2



0.5
{0.02}
43
Rear header



0.65
{0.026}
44
Roof corner gusset
X


1.20
{0.0472}
45
Front fender stay


X
1.20
{0.0472}
46
Front fender panel


X
0.65
{0.026}
47
Floor reinforcement
Front
X


1.20
{0.0472}
Rear
X

X
0.80
{0.031}
48
Front floor panel component
Front floor side panel

X

0.60
{0.024}
tunnel reinforcement
X


0.75
{0.030}
Dashboard bracket
X


0.60
{0.024}
49
Front B frame
X


1.00
{0.0394}
50
Seat bracket reinforcement

X

1.40
{0.0551}
51
Crossmember gusset

X

1.40
{0.0551}
52
Crossmember No.2
X


0.90
{0.035}
53
Seat bracket
X


1.60
{0.0630}
54
Seat anchorage retainer
X


1.40
{0.0551}
55
Crossmember No.3 component
Crossmember No.3
X


0.90
{0.035}
Tank bracket (upper)
X


1.40
{0.0551}
Tank bracket (lower)
X

X
1.00
{0.0394}
Crossmember junction No.1 (rear)
X

X
1.00
{0.0394}
Crossmember No.3 reinforcement
X

X
1.20
{0.0472}
56
Crossmember No.3 (lower)


X
0.60
{0.024}
57
Side sill (inner) component
Side sill (inner)
X

X
1.20
{0.0472}
Hinge pillar (inner, lower)
X

X
1.20
{0.0472}
58
Crossmember No.4
X

X
0.80
{0.031}
59
Anchorage reinforcement
X


1.80
{0.0709}
60
Anchorage reinforcement
X


1.20
{0.0472}
61
Rear floor panel



0.60
{0.024}
62
Rear seat bracket



1.00
{0.0394}
63
Floor side panel
X

X
0.90
{0.035}
64
Tank bracket

X
X
1.00
{0.0394}
65
Jack reinforcement



1.20
{0.0472}
66
Rear side frame component
Rear side sill (inner)
X

X
1.40
{0.0551}
Rear frame reinforcement
X

X
1.00
{0.0394}
Toque box C
X

X
1.40
{0.0551}
Rear side frame
Front
X

X
1.60
{0.0630}
Center
X

X
1.60
{0.0630}
Rear



1.40
{0.0551}
Rear suspension housing


X
1.80
{0.0709}
67
Rear bumper bracket
X

X
1.20
{0.0472}
68
Rear end panel component
Rear end panel


X
0.60
{0.024}
Rear end member (side)


X
1.00
{0.0394}
Rear end member (center)


X
0.65
{0.026}
69
Rear bumper reinforcement (center)


X
1.00
{0.0394}
70
Rear bumper reinforcement (side)


X
1.00
{0.0394}
71
Rear bumper reinforcement (lower)


X
1.00
{0.0394}
72
Striker tower


X
1.80
{0.0709}


VIN: 3MD**

am2zzb00000775

x:Applied
-:Not applied

No.

Part name

Ultra high-tension steel

High-tension steel

Rust proof steel

Thickness (mm) {in}
1
Bonnet (outer panel)

X
X
0.60
{0.024}
2
Bumper bracket component
Bumper bracket
X

X
1.60
{0.0630}
Bumper bracket side


X
1.80
{0.0709}
Suspension mounting reinforcement

X
X
1.40
{0.0551}
Outer frame reinforcement

X
X
0.90
{0.035}
3
Front side frame (inner)
X

X
1.20
{0.0472}
4
Front fender bracket


X
0.80
{0.031}
5
Wheel apron panel component
Apron panel (front)


X
1.00
{0.0394}
Apron reinforcement No.3

X
X
0.90
{0.035}
Apron reinforcement (upper)


X
0.80
{0.031}
Suspension housing (upper)

X
X
1.80
{0.0709}
Apron reinforcement No.1


X
1.20
{0.0472}
Apron reinforcement No.2


X
0.80
{0.031}
Suspension housing (lower)


X
0.70
{0.03}
Apron reinforcement gusset


X
1.00
{0.0394}
Wheel apron (front) reinforcement



1.20
{0.0472}
Wheel apron (rear) reinforcement


X
1.40
{0.0551}
6
Front fender junction


X
0.80
{0.031}
7
Light bracket


X
1.60
{0.0630}
8
Front side frame (outer)
X

X
1.00
{0.0394}
9
Brake hose bracket



2.00
{0.0787}
10
Cowl side reinforcement (Front) component
Cowl side reinforcement (front)


X
0.80
{0.031}
Light bracket (rear)
X

X
1.00
{0.0394}
11
Front frame (rear) component
Front frame (rear)
X

X
1.40
{0.0551}
Lower arm bracket


X
1.60
{0.0630}
12
Torque box
Front

X
X
1.60
{0.0630}
Rear
X

X
0.80
{0.031}
13
Hinge pillar (inner)
X

X
0.90
{0.035}
14
Front pillar (inner)
X


1.20
{0.0472}
15
Front pillar reinforcement (upper)


X
0.65
{0.026}
16
Roof rail (inner)
X


0.90
{0.035}
17
Hinge reinforcement component
Hinge reinforcement
X


1.00
{0.0394}
Front pillar (inner) reinforcement
X


1.40
{0.0551}
18
Front pillar reinforcement
X


1.40
{0.0551}
19
Roof rail reinforcement
X


1.00
{0.0394}
20
Center pillar (inner)
Upper

X

0.70
{0.03}
Lower

X
X
1.20
{0.0472}
21
Center pillar reinforcement
Upper
X


2.00
{0.0787}
Lower
X


2.00
{0.0787}
22
Side sill reinforcement
X

X
1.40
{0.0551}
23
Rear pillar (inner) component
Rear pillar (inner)


X
0.65
{0.026}
Wheel housing (inner)


X
0.60
{0.024}
Seal plate

X
X
0.60
{0.024}
24
Wheel housing (outer)


X
0.60
{0.024}
25
Suspension housing reinforcement

X
X
0.60
{0.024}
26
Rear fender rain rail component
Rear fender rain rail


X
0.65
{0.026}
Corner plate


X
0.65
{0.026}
27
Light bracket (rear)


X
0.65
{0.026}
28
Rear fender panel (lower)


X
0.65
{0.026}
29
Side frame panel (outer)


X
0.65
{0.026}
30
Cowl side reinforcement (rear)
X

X
1.40
{0.0551}
31
Front door panel (outer)

X
X
0.65
{0.026}
32
Rear door panel (outer)

X
X
0.60
{0.024}
33
Package tray
Package member (front)



1.00
{0.0394}
Package reinforcement



0.55
{0.022}
Package tray



0.55
{0.022}
Package member


X
0.60
{0.024}
34
Trunk lid
Outer panel


X
0.65
{0.026}
Inner panel


X
0.60
{0.024}
End panel


X
0.60
{0.024}
35
Dash panel (upper)


X
0.65
{0.026}
36
Cowl plate
X

X
1.00
{0.0394}
37
Wiper bracket

X
X
1.40
{0.0551}
38
Dash panel (lower)

X
X
1.00
{0.0394}
39
Roof panel



0.65
{0.026}
40
Front header


X
0.65
{0.026}
41
Roof reinforcement No.1
X


0.70
{0.028}
42
Roof reinforcement No.2



0.5
{0.02}
43
Rear header



0.65
{0.026}
44
Roof corner gusset
X


1.20
{0.0472}
45
Front fender stay


X
1.20
{0.0472}
46
Front fender panel


X
0.65
{0.026}
47
Floor reinforcement
Front
X


1.20
{0.0472}
Rear
X

X
0.80
{0.031}
48
Front floor panel component
Front floor side panel

X

0.60
{0.024}
tunnel reinforcement
X


0.75
{0.030}
Dashboard bracket
X


0.60
{0.024}
49
Front B frame
X


1.00
{0.0394}
50
Seat bracket reinforcement

X

1.40
{0.0551}
51
Crossmember gusset

X

1.40
{0.0551}
52
Crossmember No.2
X


0.90
{0.035}
53
Seat bracket
X


1.60
{0.0630}
54
Seat anchorage retainer
X


1.40
{0.0551}
55
Crossmember No.3 component
Crossmember No.3
X


0.90
{0.035}
Tank bracket (upper)
X


1.40
{0.0551}
Tank bracket (lower)
X

X
1.00
{0.0394}
Crossmember junction No.1 (rear)
X

X
1.00
{0.0394}
Crossmember No.3 reinforcement
X

X
1.20
{0.0472}
56
Crossmember No.3 (lower)


X
0.60
{0.024}
57
Side sill (inner) component
Side sill (inner)
X

X
1.20
{0.0472}
Hinge pillar (inner, lower)
X

X
1.20
{0.0472}
58
Crossmember No.4
X

X
0.80
{0.031}
59
Anchorage reinforcement
X


1.80
{0.0709}
60
Anchorage reinforcement
X


1.20
{0.0472}
61
Rear floor panel



0.60
{0.024}
62
Rear seat bracket



1.00
{0.0394}
63
Floor side panel
X

X
0.90
{0.035}
64
Tank bracket

X
X
1.00
{0.0394}
65
Jack reinforcement



1.20
{0.0472}
66
Rear side frame component
Rear side sill (inner)
X

X
1.40
{0.0551}
Rear frame reinforcement
X

X
1.00
{0.0394}
Toque box C
X

X
1.40
{0.0551}
Rear side frame
Front
X

X
1.60
{0.0630}
Center
X

X
1.60
{0.0630}
Rear
X

X
1.40
{0.0551}
Rear suspension housing


X
1.80
{0.0709}
67
Rear bumper bracket
X

X
1.20
{0.0472}
68
Rear end panel component
Rear end panel


X
0.60
{0.024}
Rear end member (side)


X
1.00
{0.0394}
Rear end member (center)


X
0.65
{0.026}
69
Rear bumper reinforcement (center)


X
1.00
{0.0394}
70
Rear bumper reinforcement (side)


X
1.00
{0.0394}
71
Rear bumper reinforcement (lower)


X
1.00
{0.0394}
72
Striker tower


X
1.80
{0.0709}


5HB


VIN: MMZ**, MM0**, MM6**, MM7**, MM8**

am2zzb00000431

x:Applied
-:Not applied

No.

Part name

Ultra high-tension steel

High-tension steel

Rust proof steel

Thickness (mm) {in}
1
Bonnet (outer panel)

X
X
0.60
{0.024}
2
Bumper bracket component
Bumper bracket
X

X
1.60
{0.0630}
Bumper bracket side


X
1.80
{0.0709}
Suspension mounting reinforcement

X
X
1.40
{0.0551}
Outer frame reinforcement

X
X
0.90
{0.035}
3
Front side frame (inner)
X

X
1.20
{0.0472}
4
Front fender bracket


X
0.80
{0.031}
5
Wheel apron panel component
Apron panel (front)


X
1.00
{0.0394}
Apron reinforcement No.3

X
X
0.90
{0.035}
Apron reinforcement (upper)


X
0.80
{0.031}
Suspension housing (upper)

X
X
1.80
{0.0709}
Apron reinforcement No.1


X
1.20
{0.0472}
Apron reinforcement No.2


X
0.80
{0.031}
Suspension housing (lower)


X
0.70
{0.03}
Apron reinforcement gusset


X
1.00
{0.0394}
Wheel apron (front) reinforcement



1.20
{0.0472}
Wheel apron (rear) reinforcement


X
1.40
{0.0551}
6
Front fender junction


X
0.80
{0.031}
7
Light bracket


X
1.60
{0.0630}
8
Front side frame (outer)
X

X
1.00
{0.0394}
9
Brake hose bracket



2.00
{0.0787}
10
Cowl side reinforcement (Front) component
Cowl side reinforcement (front)


X
0.80
{0.031}
Light bracket (rear)
X

X
1.00
{0.0394}
11
Front frame (rear) component
Front frame (rear)
X

X
1.40
{0.0551}
Lower arm bracket


X
1.60
{0.0630}
12
Torque box
Front

X
X
1.60
{0.0630}
Rear
X

X
0.80
{0.031}
13
Hinge pillar (inner)
X

X
0.90
{0.035}
14
Front pillar (inner)
X


1.20
{0.0472}
15
Front pillar reinforcement (upper)


X
0.65
{0.026}
16
Roof rail (inner)
X


0.90
{0.035}
17
Hinge reinforcement component
Hinge reinforcement
X


1.00
{0.0394}
Front pillar (inner) reinforcement
X


1.40
{0.0551}
18
Front pillar reinforcement
X


1.40
{0.0551}
19
Roof rail reinforcement
X


1.00
{0.0394}
20
Center pillar (inner)
Upper

X

0.70
{0.03}
Lower

X
X
1.20
{0.0472}
21
Center pillar reinforcement
Upper
X


2.00
{0.0787}
Lower
X


2.00
{0.0787}
22
Side sill reinforcement
Front
X

X
1.40
{0.0551}
Rear
X


1.00
{0.0394}
23
Rear pillar (inner) component
Rear pillar (inner)


X
0.65
{0.026}
Wheel housing (inner)


X
0.60
{0.024}
24
Package gusset



1.00
{0.0394}
25
Rear side panel


X
0.60
{0.024}
26
Suspension housing reinforcement component
Suspension housing gusset

X
X
0.60
{0.024}
Anchorage nut plate
X


1.20
{0.0472}
Rear seat bracket
X


1.20
{0.0472}
27
Corner junction



0.60
{0.024}
28
Wheel housing (outer)


X
0.60
{0.024}
29
Rear pillar (outer) component
Rear pillar (outer)


X
0.65
{0.026}
Corner plate


X
0.65
{0.026}
Rear fender gusset


X
0.65
{0.026}
30
Rear fender panel (lower)


X
0.65
{0.026}
31
Side frame panel (outer)


X
0.65
{0.026}
32
Cowl side reinforcement (rear)
X

X
1.40
{0.0551}
33
Front door panel (outer)

X
X
0.65
{0.026}
34
Rear door panel (outer)

X
X
0.60
{0.024}
35
Liftgate panel (outer)


X
0.65
{0.026}
36
Dash panel (upper)


X
0.65
{0.026}
37
Cowl plate
X

X
1.00
{0.0394}
38
Wiper bracket

X
X
1.40
{0.0551}
39
Dash panel (lower)

X

1.00
{0.0394}
40
Roof panel



0.65
{0.026}
41
Front header


X
0.65
{0.026}
42
Roof reinforcement No.1
X


0.70
{0.028}
43
Roof reinforcement No.2



0.5
{0.02}
44
Rear header



0.65
{0.026}
45
Roof corner gusset
X


1.20
{0.0472}
46
Front fender stay


X
1.20
{0.0472}
47
Front fender panel


X
0.65
{0.026}
48
Floor reinforcement
Front
X


1.20
{0.0472}
Rear
X

X
0.80
{0.031}
49
Front floor panel component
Front floor side panel

X

0.60
{0.024}
tunnel reinforcement
X


0.75
{0.030}
Dashboard bracket
X


0.60
{0.024}
50
Front B frame
X


1.00
{0.0394}
51
Seat bracket reinforcement

X

1.40
{0.0551}
52
Crossmember gusset

X

1.40
{0.0551}
53
Crossmember No.2
X


0.90
{0.035}
54
Seat bracket
X


1.60
{0.0630}
55
Seat anchorage retainer
X


1.40
{0.0551}
56
Crossmember No.3 component
Crossmember No.3
X


0.90
{0.035}
Tank bracket (upper)
X


1.40
{0.0551}
Tank bracket (lower)
X

X
1.00
{0.0394}
Crossmember junction No.1 (rear)
X

X
1.00
{0.0394}
Crossmember No.3 reinforcement
X

X
1.20
{0.0472}
57
Crossmember No.3 (lower)


X
0.60
{0.024}
58
Crossmember No.4
X

X
0.80
{0.031}
59
Anchorage reinforcement
X


1.80
{0.0709}
60
Anchorage reinforcement
X


1.20
{0.0472}
61
Rear floor panel



0.60
{0.024}
62
Rear seat bracket



1.00
{0.0394}
63
Floor side panel
X

X
0.90
{0.035}
64
Seat back reinforcement
X


1.20
{0.0472}
65
Rear side frame component
Rear side sill (inner)
X

X
1.40
{0.0551}
Rear frame reinforcement
X

X
1.00
{0.0394}
Toque box C
X

X
1.40
{0.0551}
Rear side frame
Front
X

X
1.60
{0.0630}
Center
X

X
1.60
{0.0630}
Rear
X

X
1.40
{0.0551}
Rear suspension housing


X
1.80
{0.0709}
66
Tank bracket

X
X
1.00
{0.0394}
67
Rear bumper bracket
X

X
1.20
{0.0472}
68
Side sill (inner) component
Side sill (inner)
X

X
1.20
{0.0472}
Hinge pillar (inner, lower)
X

X
1.20
{0.0472}
69
Rear end panel component
Rear end panel


X
0.60
{0.024}
Rear end member (side)



1.00
{0.0394}
Rear end member (center)

X
X
0.65
{0.026}
Rear end reinforcement



1.00
{0.0394}
70
Back panel reinforcement bracket



1.00
{0.0394}
71
Rear bumper reinforcement (side)


X
1.00
{0.0394}
72
Rear bumper reinforcement (center)


X
1.00
{0.0394}
73
Rear bumper reinforcement (lower)


X
0.70
{0.028}
74
Striker tower


X
0.60
{0.024}


VIN: 3MD**, JM6**

am2zzb00000431

x:Applied
-:Not applied

No.

Part name

Ultra high-tension steel

High-tension steel

Rust proof steel

Thickness (mm) {in}
1
Bonnet (outer panel)

X
X
0.60
{0.024}
2
Bumper bracket component
Bumper bracket
X

X
1.60
{0.0630}
Bumper bracket side


X
1.80
{0.0709}
Suspension mounting reinforcement

X
X
1.40
{0.0551}
Outer frame reinforcement

X
X
0.90
{0.035}
3
Front side frame (inner)
X

X
1.20
{0.0472}
4
Front fender bracket


X
0.80
{0.031}
5
Wheel apron panel component
Apron panel (front)


X
1.00
{0.0394}
Apron reinforcement No.3

X
X
0.90
{0.035}
Apron reinforcement (upper)


X
0.80
{0.031}
Suspension housing (upper)

X
X
1.80
{0.0709}
Apron reinforcement No.1


X
1.20
{0.0472}
Apron reinforcement No.2


X
1.60
{0.0630}
Suspension housing (lower)


X
0.70
{0.03}
Apron reinforcement gusset


X
1.00
{0.0394}
Wheel apron (front) reinforcement



1.20
{0.0472}
Wheel apron (rear) reinforcement


X
1.40
{0.0551}
6
Front fender junction


X
0.80
{0.031}
7
Light bracket


X
1.60
{0.0630}
8
Front side frame (outer)
X

X
1.00
{0.0394}
9
Brake hose bracket



2.00
{0.0787}
10
Cowl side reinforcement (Front) component
Cowl side reinforcement (front)


X
0.80
{0.031}
Light bracket (rear)
X

X
1.00
{0.0394}
11
Front frame (rear) component
Front frame (rear)
X

X
1.40
{0.0551}
Lower arm bracket


X
1.60
{0.0630}
12
Torque box
Front

X
X
1.60
{0.0630}
Rear
X

X
0.80
{0.031}
13
Hinge pillar (inner)
X

X
0.90
{0.035}
14
Front pillar (inner)
X


1.20
{0.0472}
15
Front pillar reinforcement (upper)


X
0.65
{0.026}
16
Roof rail (inner)
X


0.90
{0.035}
17
Hinge reinforcement component
Hinge reinforcement
X


1.00
{0.0394}
Front pillar (inner) reinforcement
X


1.40
{0.0551}
18
Front pillar reinforcement
X


1.40
{0.0551}
19
Roof rail reinforcement
X


1.00
{0.0394}
20
Center pillar (inner)
Upper

X

0.70
{0.03}
Lower

X
X
1.20
{0.0472}
21
Center pillar reinforcement
Upper
X


2.00
{0.0787}
Lower
X


2.00
{0.0787}
22
Side sill reinforcement
Front
X

X
1.40
{0.0551}
Rear
X


1.00
{0.0394}
23
Rear pillar (inner) component
Rear pillar (inner)


X
0.65
{0.026}
Wheel housing (inner)


X
0.60
{0.024}
Wheel house junction


X
0.60
{0.024}
24
Package gusset



1.00
{0.0394}
25
Rear side panel


X
0.60
{0.024}
26
Suspension housing reinforcement component
Suspension housing gusset

X
X
0.60
{0.024}
Anchorage nut plate
X


1.20
{0.0472}
Rear seat bracket
X


1.20
{0.0472}
27
Corner junction



0.60
{0.024}
28
Wheel housing (outer)


X
0.60
{0.024}
29
Rear pillar (outer) component
Rear pillar (outer)


X
0.65
{0.026}
Corner plate


X
0.65
{0.026}
Rear fender gusset


X
0.65
{0.026}
30
Rear fender panel (lower)


X
0.65
{0.026}
31
Side frame panel (outer)


X
0.65
{0.026}
32
Cowl side reinforcement (rear)
X

X
1.40
{0.0551}
33
Front door panel (outer)

X
X
0.65
{0.026}
34
Rear door panel (outer)

X
X
0.60
{0.024}
35
Liftgate panel (outer)


X
0.65
{0.026}
36
Dash panel (upper)


X
0.65
{0.026}
37
Cowl plate
X

X
1.00
{0.0394}
38
Wiper bracket

X
X
1.40
{0.0551}
39
Dash panel (lower)

X
X
1.00
{0.0394}
40
Roof panel



0.65
{0.026}
41
Front header


X
0.65
{0.026}
42
Roof reinforcement No.1
X


0.70
{0.028}
43
Roof reinforcement No.2


X
0.5
{0.02}
44
Rear header



0.65
{0.026}
45
Roof corner gusset
X


1.20
{0.0472}
46
Front fender stay


X
1.20
{0.0472}
47
Front fender panel


X
0.65
{0.026}
48
Floor reinforcement
Front
X


1.20
{0.0472}
Rear
X


0.80
{0.031}
49
Front floor panel component
Front floor side panel

X
X
0.60
{0.024}
tunnel reinforcement
X

X
0.75
{0.030}
Dashboard bracket
X


0.60
{0.024}
50
Front B frame
X

X
1.00
{0.0394}
51
Seat bracket reinforcement

X

1.40
{0.0551}
52
Crossmember gusset

X

1.40
{0.0551}
53
Crossmember No.2
X


0.90
{0.035}
54
Seat bracket
X


1.60
{0.0630}
55
Seat anchorage retainer
X


1.40
{0.0551}
56
Crossmember No.3 component
Crossmember No.3
X


0.90
{0.035}
Tank bracket (upper)
X


1.40
{0.0551}
Tank bracket (lower)
X

X
1.00
{0.0394}
Crossmember junction No.1 (rear)
X

X
1.00
{0.0394}
Crossmember No.3 reinforcement
X

X
1.20
{0.0472}
57
Crossmember No.3 (lower)


X
0.60
{0.024}
58
Crossmember No.4
X

X
0.80
{0.031}
59
Anchorage reinforcement
X


1.80
{0.0709}
60
Anchorage reinforcement
X


1.20
{0.0472}
61
Rear floor panel


X
0.60
{0.024}
62
Rear seat bracket



1.00
{0.0394}
63
Floor side panel
X

X
0.90
{0.035}
64
Seat back reinforcement
X


1.20
{0.0472}
65
Rear side frame component
Rear side sill (inner)
X

X
1.40
{0.0551}
Rear frame reinforcement
X

X
1.00
{0.0394}
Toque box C
X

X
1.40
{0.0551}
Rear side frame
Front
X

X
1.60
{0.0630}
Center
X

X
1.60
{0.0630}
Rear
X

X
1.40
{0.0551}
Rear suspension housing


X
1.80
{0.0709}
66
Tank bracket

X
X
1.00
{0.0394}
67
Rear bumper bracket
X

X
1.20
{0.0472}
68
Side sill (inner) component
Side sill (inner)
X

X
1.20
{0.0472}
Hinge pillar (inner, lower)
X

X
1.20
{0.0472}
69
Rear end panel component
Rear end panel


X
0.60
{0.024}
Rear end member (side)



1.00
{0.0394}
Rear end member (center)

X
X
0.65
{0.026}
Rear end reinforcement



1.00
{0.0394}
70
Back panel reinforcement bracket



1.00
{0.0394}
71
Rear bumper reinforcement (side)


X
1.00
{0.0394}
72
Rear bumper reinforcement (center)


X
1.00
{0.0394}
73
Rear bumper reinforcement (lower)


X
0.70
{0.028}
74
Striker tower


X
0.60
{0.024}
