ULTRA HIGH-TENSION STEEL [CONSTRUCTION]

id098007745600


Characteristics of Ultra High-Tensile Steel Plates

•  Ultra high-tensile steel plates have enhanced tensile strength compared to previous high-tensile steel plates.
•  Because the strength is maintained even though the plates are thin-walled, the ultra high-tensile steel plates are used for the frames and the main frame parts which form the cabin, reducing the weight of the vehicle.
•  Enhanced shock absorption has improved the safety.

Range of Use and Cautions for Service

•  Because the ultra high-tensile steel is hard and it may be difficult to reform, when extracting the damaged part using a frame repair machine, perform the work verifying that other parts are not affected.
•  When drilling welded parts, use a well-ground drill bit.
•  After welding, inspect the weld strength. If adhesion is poor, perform arc welding (plug welding).

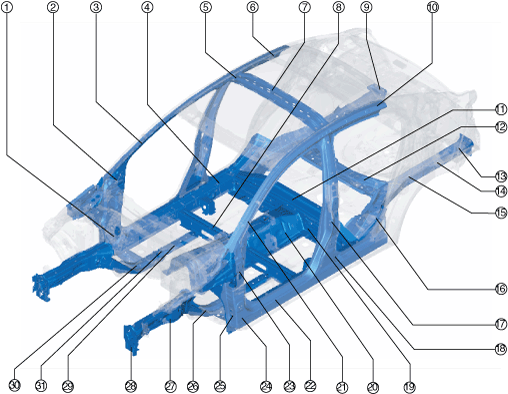

4SD


VIN: 3MD**

am2zzb00000746

No.

Part name

Strength (MPa) {kgf/cm2, psi}
1
Side sill (front)
590
{6016, 85572}
2
Front pillar reinforcement (lower)
780
{7954, 113130}
3
Front pillar (inner)
1180
{12032, 171145}
4
Side sill reinforcement
980
{9993, 142137}
5
Roof corner gusset
590
{6016, 85572}
6
Roof rail (inner)
1180
{12032, 171145}
7
Roof reinforcement No.1
590
{6016, 85572}
8
Crossmember No.2
1180
{12032, 171145}
9
Floor side panel
780
{7954, 113130}
10
Roof rail reinforcement
980
{9993, 142137}
11
Crossmember No.3
980
{9993, 142137}
12
Crossmember No.4
780
{7954, 113130}
13
Rear side frame (rear)
780
{7954, 113130}
14
Rear side frame (center)
590
{6016, 85572}
15
Rear side frame (front)
590
{6016, 85572}
16
Side sill (inner)
590
{6016, 85572}
17
Center pillar reinforcement (upper)
980
{9993, 142137}
18
Center pillar reinforcement (lower)
590
{6016, 85572}
19
Crossmember No.3 (lower)
590
{6016, 85572}
20
Tunnel reinforcement
590
{6016, 85572}
21
Front pillar reinforcement (upper)
780
{7954, 113130}
22
Side sill reinforcement
980
{9993, 142137}
23
Cowl side reinforcement (upper)
590
{6016, 85572}
24
Hinge reinforcement
780
{7954, 113130}
25
Hinge reinforcement (inner, lower)
590
{6016, 85572}
26
Front frame (rear)
590
{6016, 85572}
27
Front side frame (outer)
590
{6016, 85572}
28
Bumper bracket
980
{9993, 142137}
29
Front B frame
780
{7954, 113130}
30
Floor reinforcement (front)
980
{9993, 142137}
31
Floor reinforcement (rear)
780
{7954, 113130}

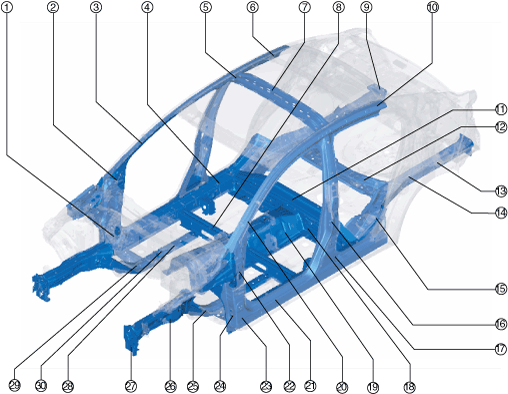

VIN: MMZ**, MM0**, MM6**, MM7**, MM8**

am2zzb00000747

No.

Part name

Strength (MPa) {kgf/cm2, psi}
1
Side sill (front)
590
{6016, 85572}
2
Front pillar reinforcement (lower)
780
{7954, 113130}
3
Front pillar (inner)
1180
{12032, 171145}
4
Side sill reinforcement
980
{9993, 142137}
5
Roof corner gusset
590
{6016, 85572}
6
Roof rail (inner)
1180
{12032, 171145}
7
Roof reinforcement No.1
590
{6016, 85572}
8
Crossmember No.2
1180
{12032, 171145}
9
Floor side panel
780
{7954, 113130}
10
Roof rail reinforcement
980
{9993, 142137}
11
Crossmember No.3
980
{9993, 142137}
12
Crossmember No.4
780
{7954, 113130}
13
Rear side frame (center)
590
{6016, 85572}
14
Rear side frame (front)
590
{6016, 85572}
15
Side sill (inner)
590
{6016, 85572}
16
Center pillar reinforcement (upper)
980
{9993, 142137}
17
Center pillar reinforcement (lower)
590
{6016, 85572}
18
Crossmember No.3 (lower)
590
{6016, 85572}
19
Tunnel reinforcement
590
{6016, 85572}
20
Front pillar reinforcement (upper)
780
{7954, 113130}
21
Side sill reinforcement
980
{9993, 142137}
22
Cowl side reinforcement (upper)
590
{6016, 85572}
23
Hinge reinforcement
780
{7954, 113130}
24
Hinge reinforcement (inner, lower)
590
{6016, 85572}
25
Front frame (rear)
590
{6016, 85572}
26
Front side frame (outer)
590
{6016, 85572}
27
Bumper bracket
980
{9993, 142137}
28
Front B frame
780
{7954, 113130}
29
Floor reinforcement (front)
980
{9993, 142137}
30
Floor reinforcement (rear)
780
{7954, 113130}


5HB

am2zzb00000741

No.

Part name

Strength (MPa) {kgf/cm2, psi}
1
Side sill (front)
590
{6016, 85572}
2
Front pillar reinforcement (lower)
780
{7954, 113130}
3
Front pillar (inner)
1180
{12032, 171145}
4
Side sill reinforcement
980
{9993, 142137}
5
Roof corner gusset
590
{6016, 85572}
6
Roof rail (inner)
1180
{12032, 171145}
7
Roof reinforcement No.1
590
{6016, 85572}
8
Crossmember No.2
1180
{12032, 171145}
9
Floor side panel
780
{7954, 113130}
10
Roof rail reinforcement
980
{9993, 142137}
11
Crossmember No.3
980
{9993, 142137}
12
Crossmember No.4
780
{7954, 113130}
13
Rear side frame (rear)
780
{7954, 113130}
14
Rear side frame (center)
590
{6016, 85572}
15
Rear side frame (front)
590
{6016, 85572}
16
Side sill (inner)
590
{6016, 85572}
17
Center pillar reinforcement (upper)
980
{9993, 142137}
18
Center pillar reinforcement (lower)
590
{6016, 85572}
19
Crossmember No.3 (lower)
590
{6016, 85572}
20
Tunnel reinforcement
590
{6016, 85572}
21
Front pillar reinforcement (upper)
780
{7954, 113130}
22
Side sill reinforcement
980
{9993, 142137}
23
Cowl side reinforcement (upper)
590
{6016, 85572}
24
Hinge reinforcement
780
{7954, 113130}
25
Hinge reinforcement (inner, lower)
590
{6016, 85572}
26
Front frame (rear)
590
{6016, 85572}
27
Front side frame (outer)
590
{6016, 85572}
28
Bumper bracket
980
{9993, 142137}
29
Front B frame
780
{7954, 113130}
30
Floor reinforcement (front)
980
{9993, 142137}
31
Floor reinforcement (rear)
780
{7954, 113130}
