FRONT SIDE FRAME INSTALLATION [PANEL REPLACEMENT]

id098008606000

Symbol Mraks

am2zzb00000463

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

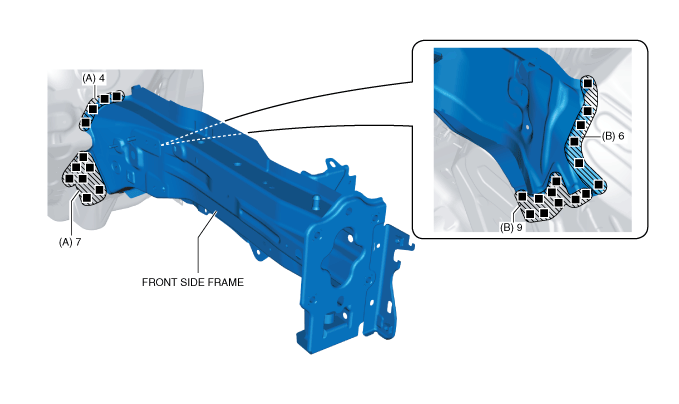

4.  Plug weld the 11 locations indicated by (A) shown in the figure.

5.  Plug weld the 15 locations indicated by (B) from front wheel housing shown in the figure, then install the front side frame.

am2zzb00000779
