CORNER PLATE REMOVAL [PANEL REPLACEMENT]

id098008610400

Symbol Marks

am2zzb00000530

Removal Procedure

4SD

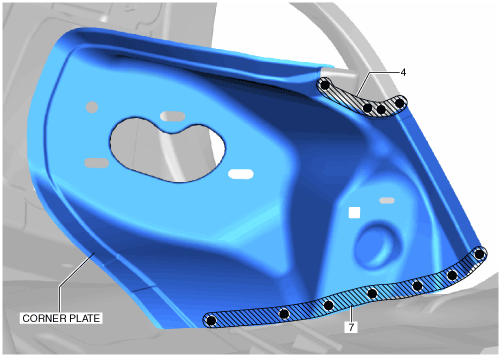

1.  Drill the 11 locations indicated shown in the figure.

am2zzb00000610

2.  Remove the corner plate.

5HB

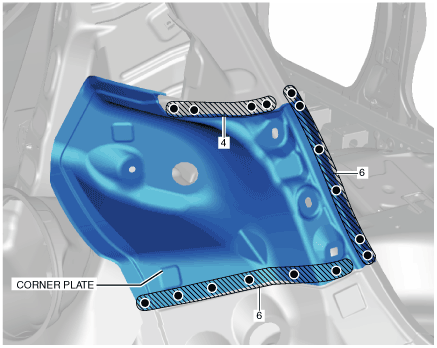

1.  Drill the 16 locations indicated shown in the figure.

am2zzb00000531

2.  Remove the corner plate.
