CORNER PLATE INSTALLATION [PANEL REPLACEMENT]

id098008610500

Symbol Marks

am2zzb00000532

Installation Procedure

4SD

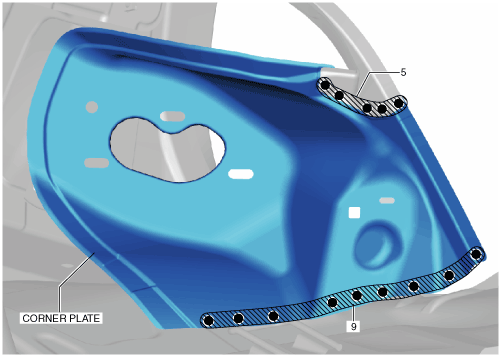

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions

2.  After temporarily installing new parts, make sure the related parts fit properly.

3.  Spot weld the 14 locations indicated shown in the figure, then install the corner plate.

am2zzb00000611

5HB

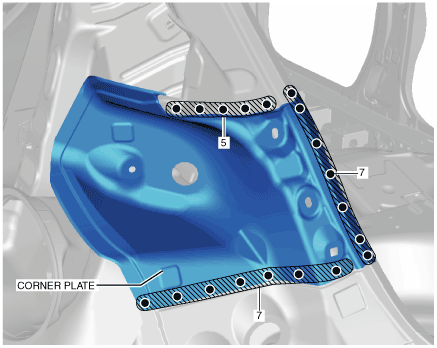

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions

2.  After temporarily installing new parts, make sure the related parts fit properly.

3.  Spot weld the 19 locations indicated shown in the figure, then install the corner plate.

am2zzb00000533
