CORNER JUNCTION REMOVAL [PANEL REPLACEMENT]


id098008611400


Symbol Marks

am2zzb00000540

Removal Procedure

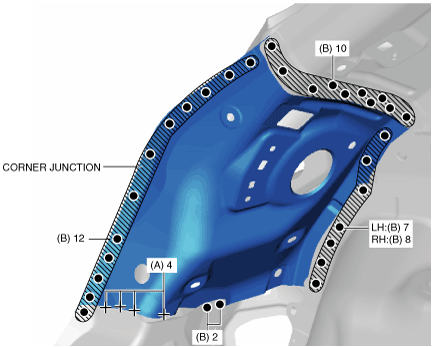

1.  Grind the 4 locations indicated by (A) shown in the figure.

2.  Drill the 31 locations (LH), 32 locations (RH) indicated by (B) shown in the figure.

adejjb00000434

3.  Remove the corner junction.
