FLOOR SIDE PANEL REMOVAL [PANEL REPLACEMENT]

id098008618700

Symbol Marks

am2zzb00000566

Removal Procedure

1.  Drill the 5 locations indicated by (A) shown in the figure.

Note

•  When drilling the 5 locations indicated by (A) shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

2.  Drill the 5 locations idicated by (B) shown in the figure.

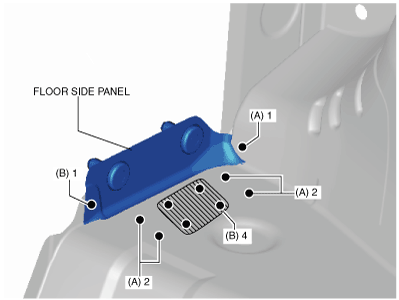

am2zzb00000567

3.  Remove the floor side panel.
