WHEEL HOUSE JUNCTION REMOVAL [PANEL REPLACEMENT]

id098008666600

Symbol Marks

am2zzb00000562

removal Procedure

1.  Drill the 18 locations indicated from the room side shown in the figure.

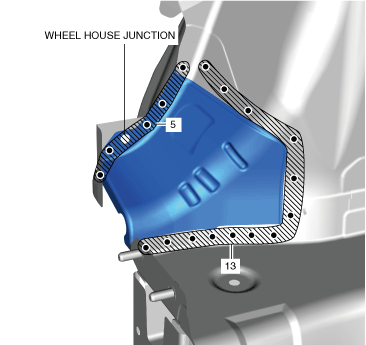

am2zzb00000729

2.  Remove the wheel house junction.
