REAR FLOOR PAN REMOVAL [PANEL REPLACEMENT]

id098008742700

Symbol Marks

am2zzb00000570

Removal Procedure

4SD

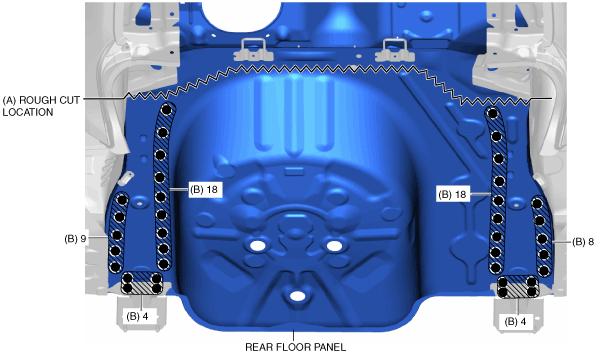

1.  Rough cut the 1 location indicated by (A) shown in the figure.

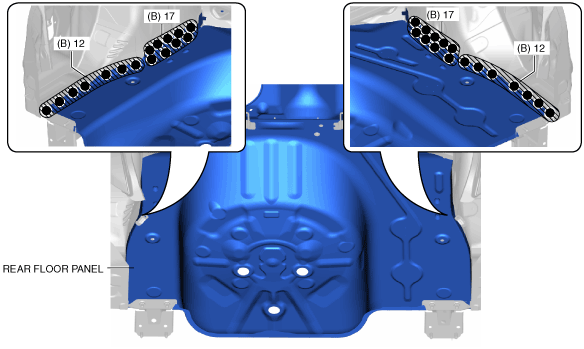

2.  Drill the 119 locations indicated by (B) shown in the figure.

Note

•  When drilling the 119 locations indicated by (B) shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

am2zzb00000604

am2zzb00000605

3.  Remove the rear floor panel.

5HB

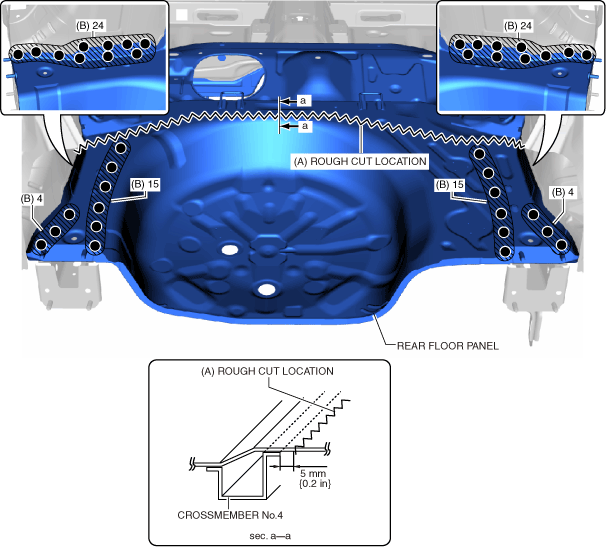

1.  Rough cut the 1 location indicated by (A) shown in the figure.

Caution

•  When rough cutting area (A), cut 5 mm {0.2 in} away from the flange edge of crossmember No.4.

2.  Drill the 86 locations indicated by (B) shown in the figure.

Note

•  When drilling the 86 locations indicated by (B) shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

am2zzb00000732

3.  Remove the rear floor panel.
