ROOF PANEL REMOVAL [PANEL REPLACEMENT]

id098008744300

Symbol Marks

am2zzb00000580

Removal Procedure

4SD

Caution

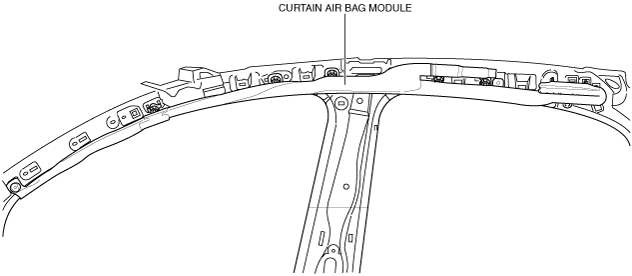

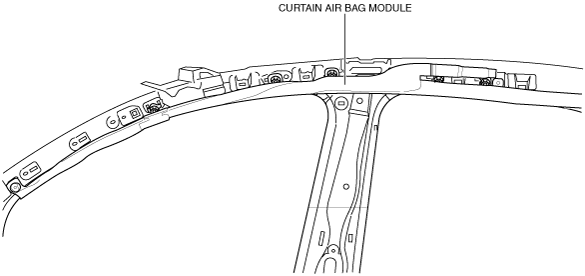

•  Remove the curtain air bag module to prevent damage before servicing.

am2zzb00000689

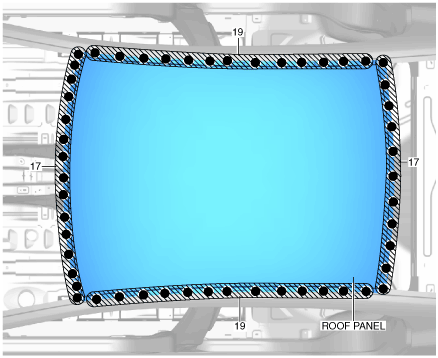

1.  Drill the 72 locations indicated shown in the figure.

am2zzb00000615

2.  Remove the roof panel.

5HB

Caution

•  Remove the curtain air bag module to prevent damage before servicing.

am2zzb00000581

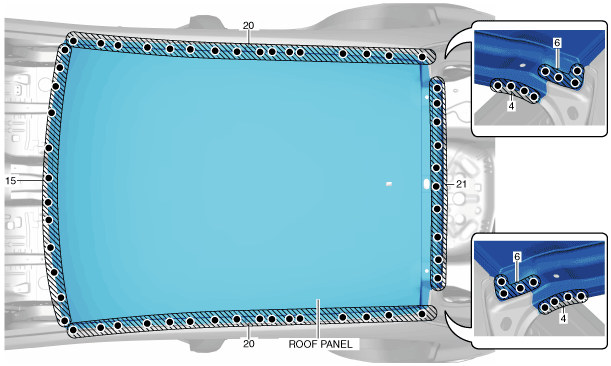

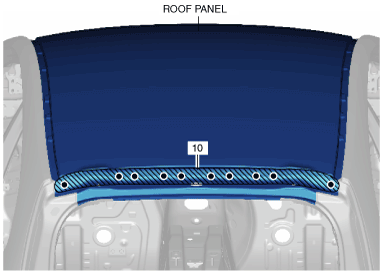

1.  Drill the 106 locations indicated shown in the figure.

am2zzb00000582

am2zzb00000583

2.  Remove the roof panel.
