ROOF PANEL INSTALLATION [PANEL REPLACEMENT]

id098008744400

Symbol Marks

am2zzb00000584

Installation Procedure

4SD

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

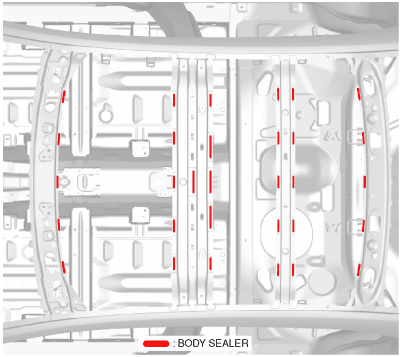

4.  Apply the body sealer to the position shown in the figure.

am2zzb00000616

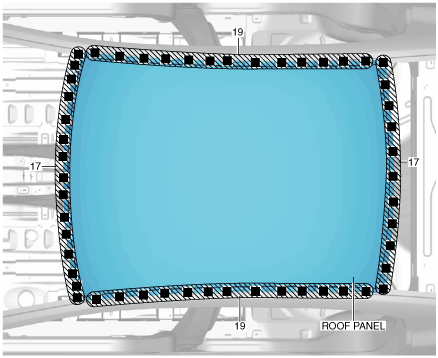

5.  Plug weld the 72 locations indicated shown in the figure, then install the roof panel.

am2zzb00000617

5HB

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

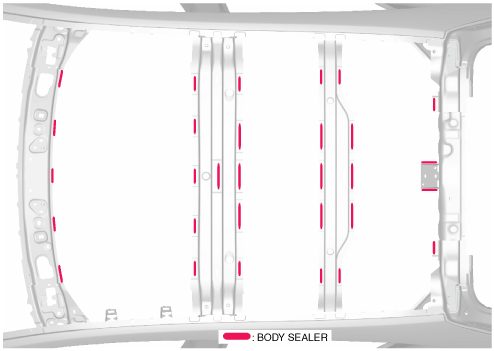

4.  Apply the body sealer to the position shown in the figure.

am2zzb00000585

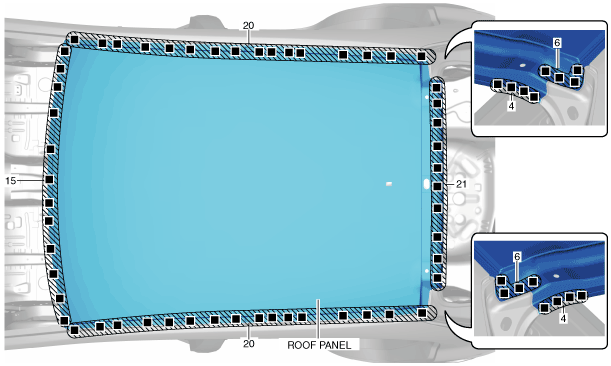

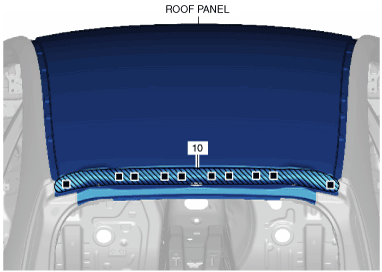

5.  Plug weld the 106 locations indicated shown in the figure, then install the roof panel.

am2zzb00000586

am2zzb00000587
