REAR FENDER PANEL REMOVAL [PANEL REPLACEMENT]

id098008744900

Symbol Marks

am2zzb00000517

Removal Procedure

4SD

Caution

•  Avoid cutting with a blowtorch or similar tools as the insulator is flammable shown in the figure.

am2zzb00000688

1.  Rough cut the 2 locations indicated by (A) shown in the figure

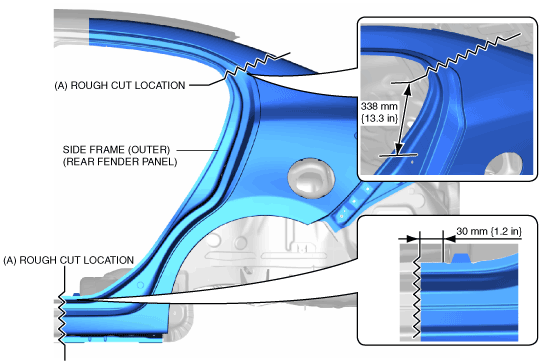

am2zzb00000597

2.  Drill the 79 locations indicated by (B) shown in the figure.

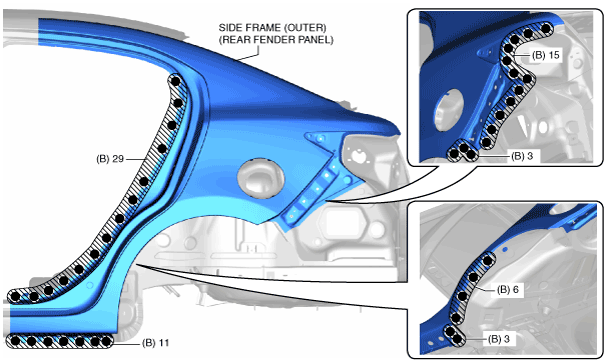

am2zzb00000598

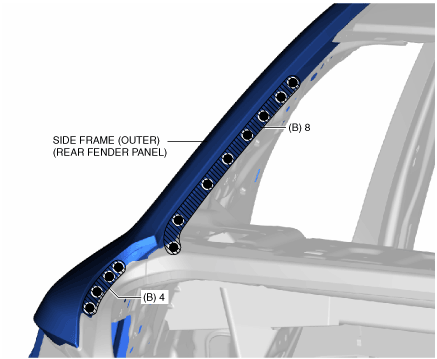

am2zzb00000599

3.  Remove the side frame (outer) (rear fender panel).

5HB

Caution

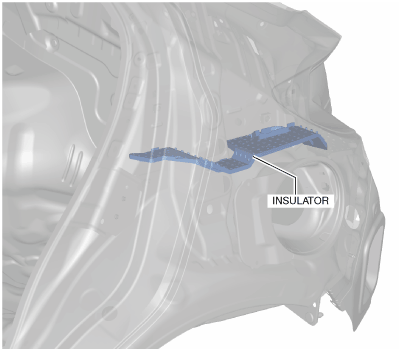

•  Avoid cutting with a blowtorch or similar tools as the insulator is flammable shown in the figure.

am2zzb00000518

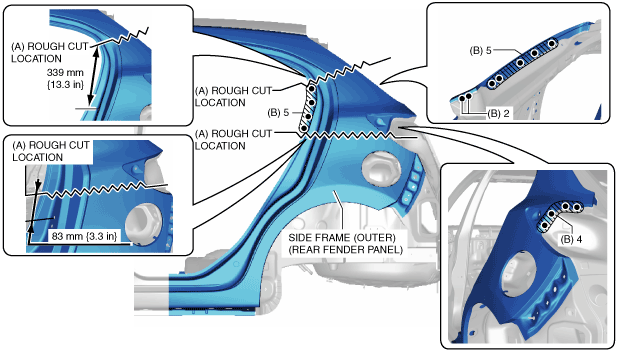

1.  Rough cut the 2 locations indicated by (A) shown in the figure.

2.  Drill the 16 locations indicated by (B) shown in the figure, then remove the part of side frame (outer) (rear fender panel).

am2zzb00000519

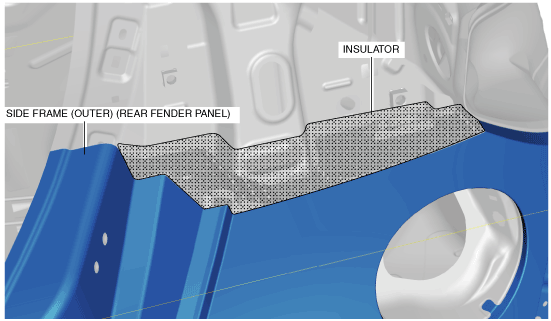

3.  Use the scissors and cut the insulator.

am2zzb00000520

4.  Rough cut the location indicated by (C) shown in the figure.

5.  Drill the 61 locations indicated by (D) shown in the figure.

am2zzb00000521

6.  Remove the side frame (outer) (rear fender panel).
