WHEEL APRON COMPONENT REMOVAL [PANEL REPLACEMENT]

id098008746000

Symbol Mraks

am2zzb00000452

Removal Procedure

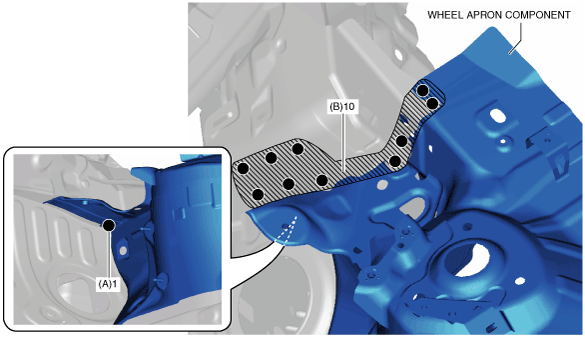

1.  Grind the 1 location indicated by (A) shown in the figure.

2.  Drill the 10 locations indicated by (B) shown in the figure.

am2zzb00000453

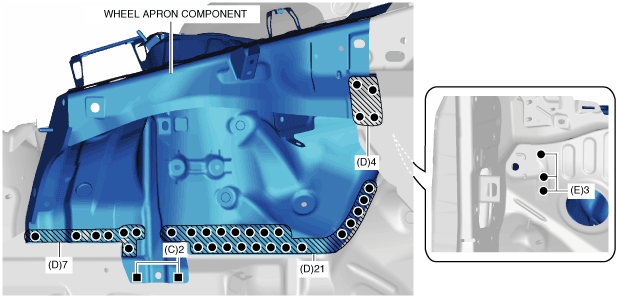

3.  Grind the 2 locations indicated by (C) shown in the figure.

4.  Drill the 32 locations indicated by (D) from the wheel housing shown in the figure.

5.  Drill the 3 locations indicated by (E) from the room shown in the figure.

am2zzb00000454

6.  Remove the wheel apron component.
