REAR PILLAR (OUTER) REMOVAL [PANEL REPLACEMENT]

id098008747200

Symbol Marks

am2zzb00000558

Removal Procedure

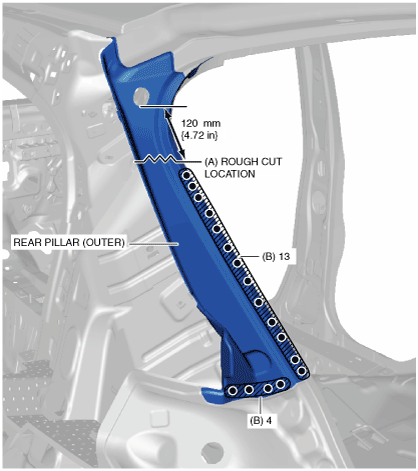

1.  Rough cut the 1 location indicated by (A) shown in the figure.

2.  Drill the 17 locations indicated by (B) shown in the figure.

am2zzb00000559

3.  Remove the rear pillar (outer).
