REAR END REINFORCEMENT REMOVAL [PANEL REPLACEMENT]

id098008755500

Symbol Marks

am2zzb00000545

Rmoval Procedure

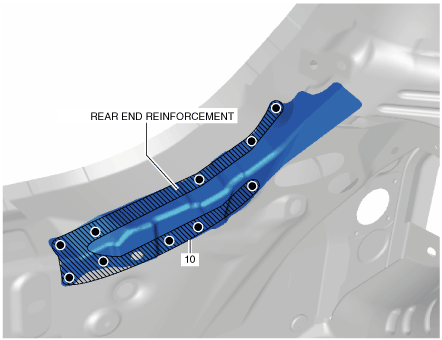

1.  Drill the 10 locations indicate shown in the figure.

am2zzb00000546

2.  Remove the rear end reinforcement.
