REAR END REINFORCEMENT INSTALLATION [PANEL REPLACEMENT]

id098008755600

Symbol Marks

am2zzb00000547

Installation procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

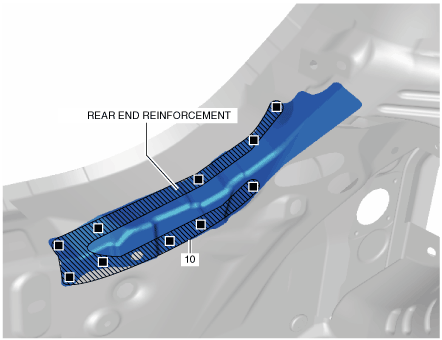

4.  Plug weld the 10 locations indicated shown in the figure, then install the rear end reinforcement.

am2zzb00000548
