REAR SIDE FRAME REMOVAL [PANEL REPLACEMENT]

id098008801200

Symbol Marks

am2zzb00000574

Removal Procedure

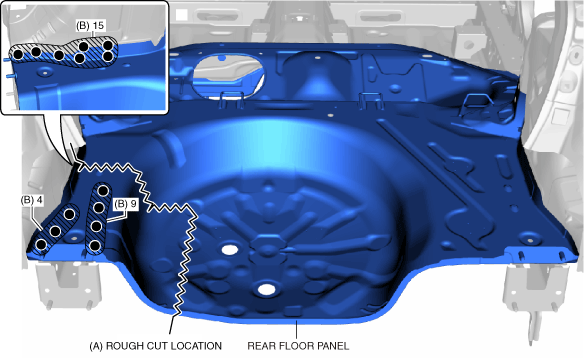

1.  Rough cut the 1 location indicated by (A) shown in the figure.

2.  Drill the 28 locations indicated by (B) shown in the figure, then remove the part of rear floor panel.

Note

•  When drilling the 28 locations indicated by (B) shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

am2zzb00000739

3.  Drill the 11 locations indicated by (C) shown in the figure.

am2zzb00000576

4.  Remove the rear side frame.
