PACKAGE GUSSET REMOVAL [PANEL REPLACEMENT]

id098008820000

Symbol Marks

am2zzb00000534

Removal Procedure

4SD

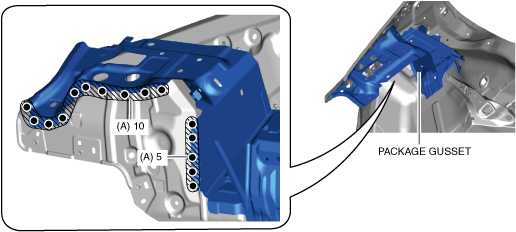

1.  Drill the 15 locations indicated by (A) shown in the figure.

am2zzb00000719

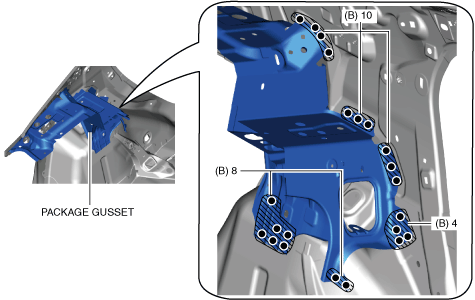

2.  Drill the 22 locations indicated by (B) shown in the figure.

am2zzb00000720

3.  Remove the package gusset.

5HB

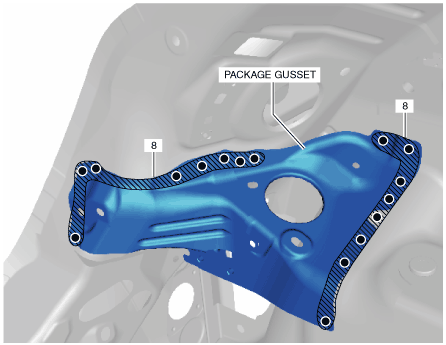

1.  Drill the 16 locations (LH), 9 locations (RH) shown in the figure.

LH

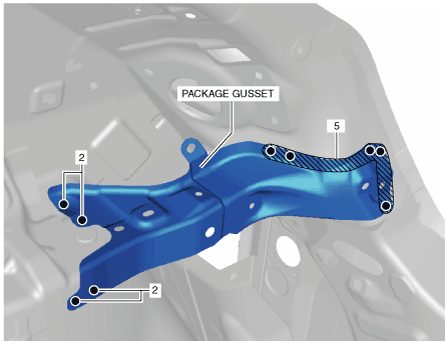

am2zzb00000535

RH

am2zzb00000536

2.  Remove the package gusset.
