FRONT FENDER JUNCTION REMOVAL [PANEL REPLACEMENT]

id098008828300

Symbol Marks

am2zzb00000458

Removal Procedure

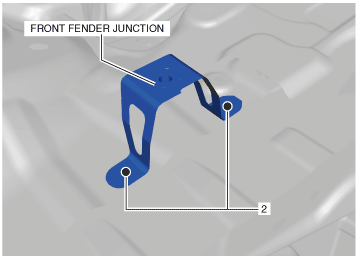

1.  Drill the 2 locations indicated shown in the figure.

Note

•  When drilling the 2 locations indicated shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

am2zzb00000459

2.  Remove the front fender junction.
