REAR SIDE PANEL REMOVAL [PANEL REPLACEMENT]

id098008829100

Symbol Marks

am2zzb00000562

removal Procedure

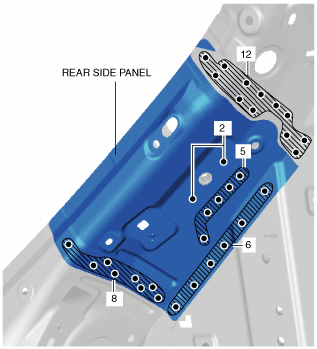

1.  Drill the 33 locations indicated from the room side shown in the figure.

am2zzb00000563

2.  Remove the rear side panel.
