COWL SIDE REINFORCEMENT (REAR) REMOVAL [PANEL REPLACEMENT]

id098008950200

Symbol Marks

am2zzb00000448

Removal Procedure

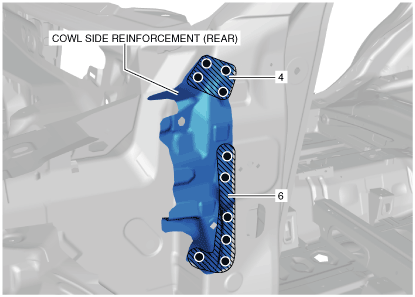

1.  Drill the 10 locations indicated shown in the figure, then remove the cowl side reinforcement (rear).

Note

•  When drilling the 10 locations indicated shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

am2zzb00000449
