BUMPER BRACKET REMOVAL [PANEL REPLACEMENT]

id098008999500

Symbol Marks

am2zzb00000432

Removal Procedure

1.  Grind the 10 locations indicated by (A) shown in the figure.

Caution

•  When grinding 10 locations indicated by (A) shown in the figure and the front side frame is damaged, there is a possibility that attachment of a bracket may become difficulty. When grinding 10 locations indicated by (A) shown in the figure, the amount removed will affect the quality of the installation.

2.  Grind the 2 locations indicated by (B) shown in the figure.

3.  Drill the 5 locations indicated by (C) shown in the figure.

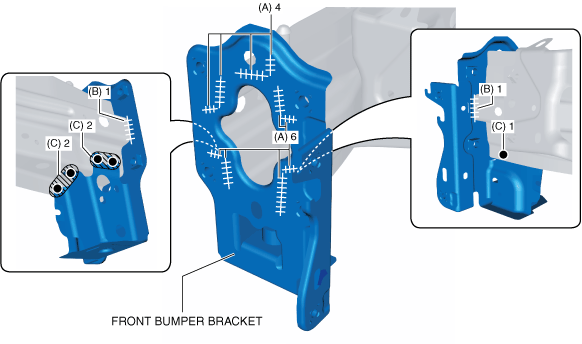

am2zzb00000776

4.  Remove the front bumper bracket.
