SOUND DUMPING SHEET REPLACEMENT [WATER-PROOF AND RUST PREVENTIVE]

id098009755700

• After repairing the body, attach the sound dumping sheet to the location shown in the figure for noise insulation.

4SD

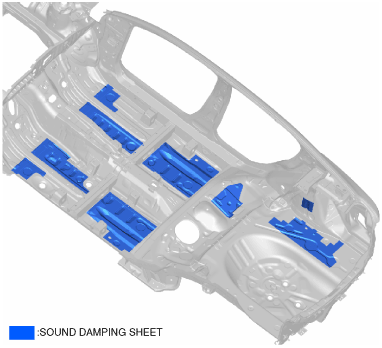

SKYACTIV-G 1.5

am2zzb00000664

SKYACTIV-D 1.5 (R.H.D.)

am2zzb00000665

SKYACTIV-D 1.5 (L.H.D.)

am2zzb00000713

5HB

SKYACTIV-G 1.3, SKYACTIV-G 1.5

Vin: JM6**

am2zzb00000666

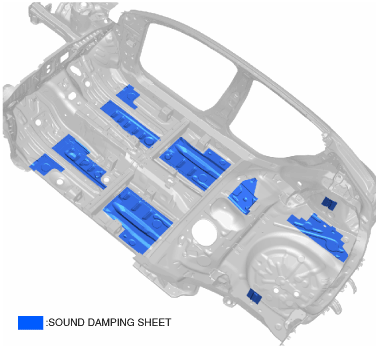

SKYACTIV-G 1.5

Vin: MMZ**, MM0**, MM6**, MM8**

am2zzb00000668

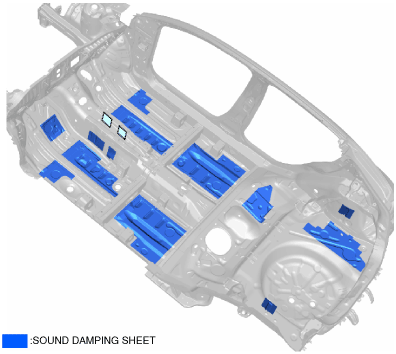

SKYACTIV-D 1.5 (R.H.D.)

am2zzb00000669

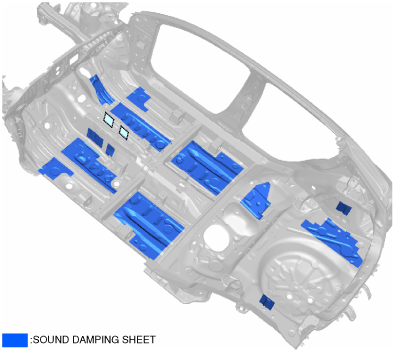

SKYACTIV-D 1.5 (L.H.D.)

am2zzb00000670
