ROOM DIMENSIONS (4) [DIMENSIONS]
id098010666800
4SD

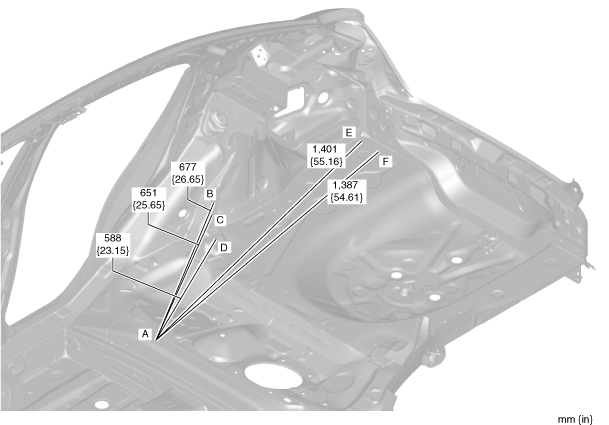

am2zzb00000773
|

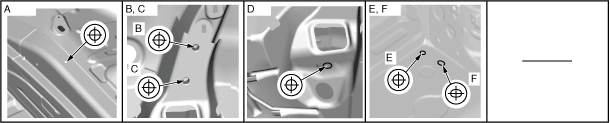

am2zzb00000774
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Crossmember No.3 datum hole
|
φ10 {0.39}
|
|
B
|
Rear hinge braket installation nut
|
M10
|
|
C
|
Rear hinge braket installation nut
|
M10
|
|
D
|
Brace reinforcement datum hole
|
φ10 {0.39}
|
|
E
|
Floor side panel datum hole
|
φ10 {0.39}
|
|
F
|
Floor side panel datum hole
|
φ10 {0.39}
|
5HB

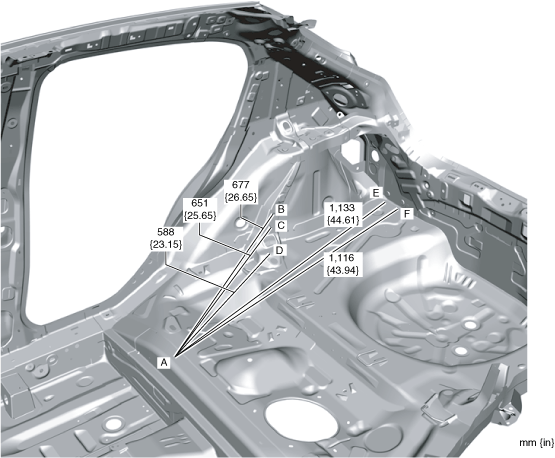

am2uub00000163
|

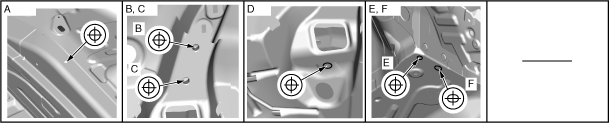

am2uub00000164
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Crossmember No.3 datum hole
|
φ10 {0.39}
|
|
B
|
Rear hinge braket installation nut
|
M10
|
|
C
|
Rear hinge braket installation nut
|
M10
|
|
D
|
Brace reinforcement datum hole
|
φ10 {0.39}
|
|
E
|
Floor side panel datum hole
|
φ10 {0.39}
|
|
F
|
Floor side panel datum hole
|
φ10 {0.39}
|
