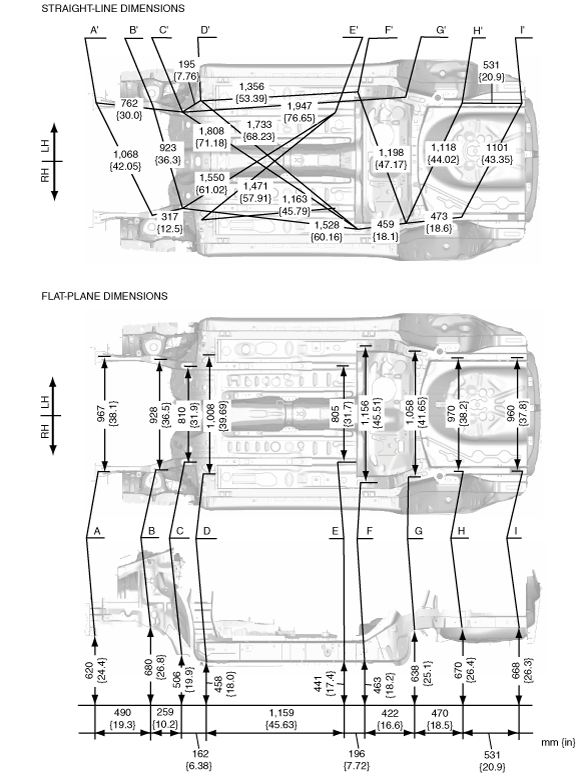

UNDERBODY DIMENSIONS [DIMENSIONS]
id098010990000
4SD
am2zzb00000672
|
am2zzb00000690
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|

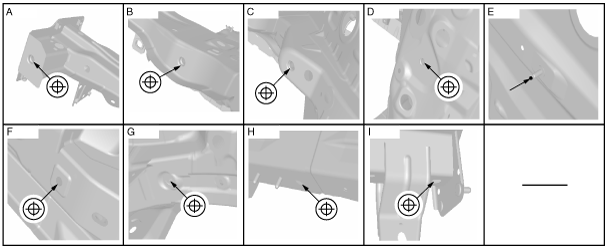

A
|
Front side frame outer datum hole
|
φ16 {0.63}
|
|
B
|
Suspension mount bolt installation hole
|
φ16 {0.63}
|
|
C
|
Suspension member installation nut
|
M14
|
|
D
|
Front suspension bracket installation hole
|
M10
|
|
E
|
Floor under cover installation bolt
|
—
|
|
F
|
Rear frame reinforcement datum hole
|
φ16 {0.63}
|
|
G
|
Rear side frame rear datum hole
|
φ16 {0.63}
|
|
H
|
Rear side frame rear datum hole
|
φ12 {0.47}
|
|
I
|
Rear side frame datum hole
|
16 X 20 {0.63 X 0.79}
|
5HB

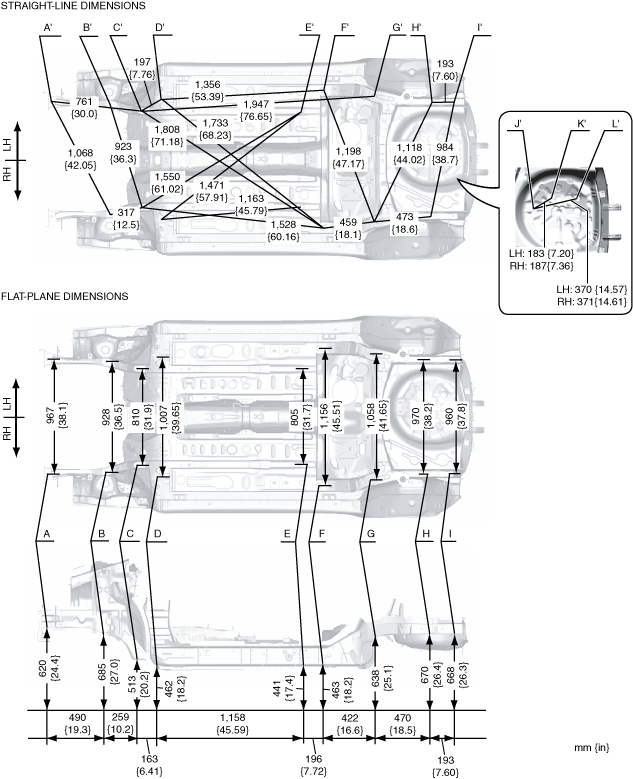

am2uub00000165
|
am2uub00000166
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|

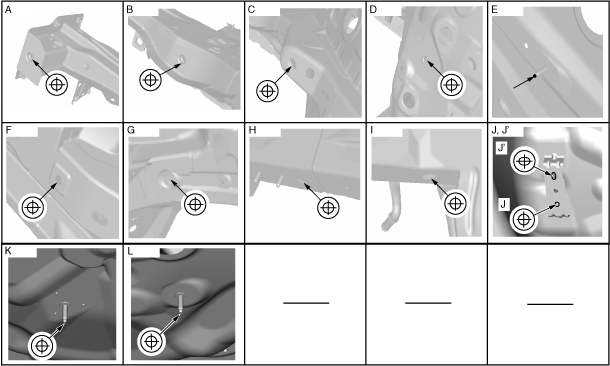

A
|
Front side frame outer datum hole
|
φ16 {0.63}
|
|
B
|
Suspension mount bolt installation hole
|
φ16 {0.63}
|
|
C
|
Suspension member installation nut
|
M14
|
|
D
|
Torque box installation hole
|
M10
|
|
E
|
Front floor panel installation bolt
|
—
|
|
F
|
Rear side frame datum hole
|
φ16 {0.63}
|
|
G
|
Rear frame reinforcement datum hole
|
φ16 {0.63}
|
|
H
|
Rear side frame rear datum hole
|
φ12 {0.47}
|
|
I
|
Rear side frame rear datum hole
|
16 X 20 {0.63 X 0.79}
|
|
J
|
Fuel tank installation hole
|
φ7 {0.3}
|
|
K
|
Air component box installation bolt
|
M6
|
|
L
|
Air component box installation bolt
|
M6
|
