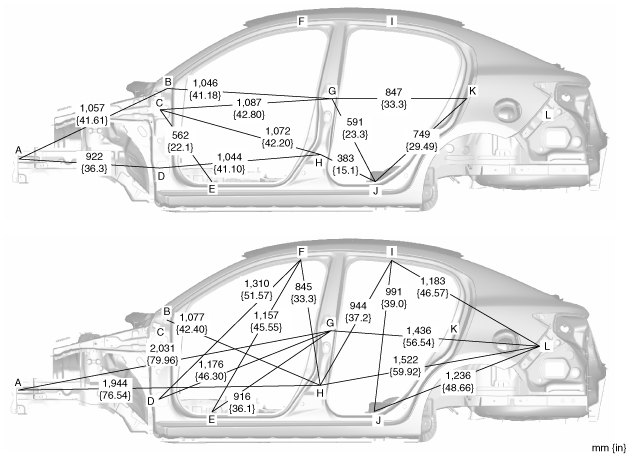

CABIN SIDE FRAME DIMENSIONS [DIMENSIONS]
id098010990400
4SD
am2zzb00000673
|
am2zzb00000675
|
|

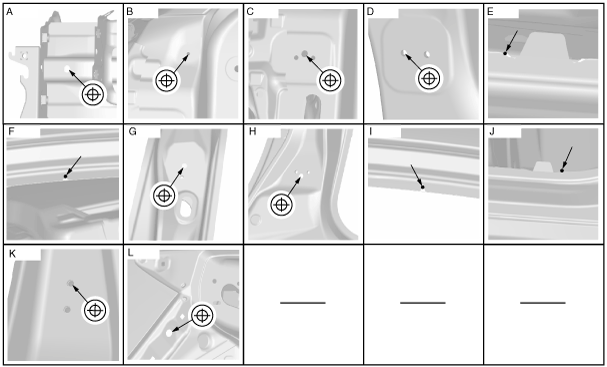

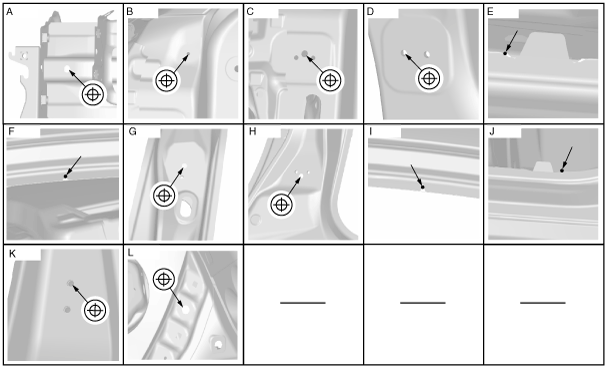

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front side frame (outer) datum hole
|
φ12 {0.47}
|
|
B
|
Front fender installation nut
|
M6
|
|
C
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
D
|
Front door hinge installation nut
|
M8
|
|
E
|
Cabin side frame (outer) notch
|
—
|
|
F
|
Cabin side frame (outer) notch
|
—
|
|
G
|
Rear door hinge installation hole
|
φ12 {0.47}
|
|
H
|
Rear door hinge installation hole
|
φ12 {0.47}
|
|
I
|
Cabin side frame (outer) notch
|
—
|
|
J
|
Cabin side frame (outer) notch
|
—
|
|
K
|
Rear door striker installation nut
|
M8
|
|
L
|
Rear bumper slider installation hole
|
φ16 {0.63}
|

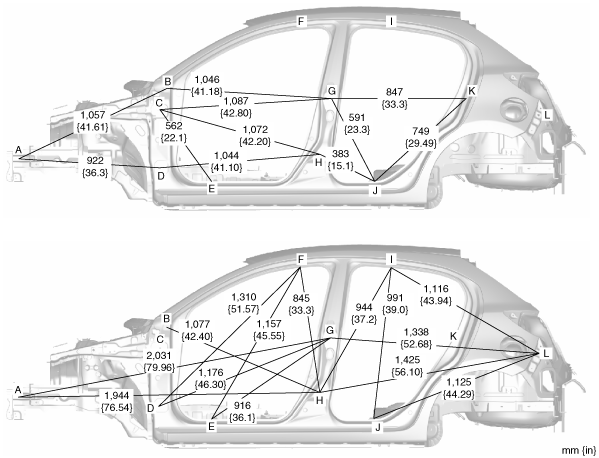

5HB
am2zzb00000699
|
adejjb00000322
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front side frame (outer) datum hole
|
φ12 {0.47}
|
|
B
|
Front fender installation nut
|
M6
|
|
C
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
D
|
Front door hinge installation nut
|
M8
|
|
E
|
Cabin side frame (outer) notch
|
—
|
|
F
|
Cabin side frame (outer) notch
|
—
|
|
G
|
Rear door hinge installation hole
|
φ12 {0.47}
|
|
H
|
Rear door hinge installation hole
|
φ12 {0.47}
|
|
I
|
Cabin side frame (outer) notch
|
—
|
|
J
|
Cabin side frame (outer) notch
|
—
|
|
K
|
Rear door striker installation nut
|
M8
|
|
L
|
Rear bumper slider installation hole
|
φ16 {0.63}
|
