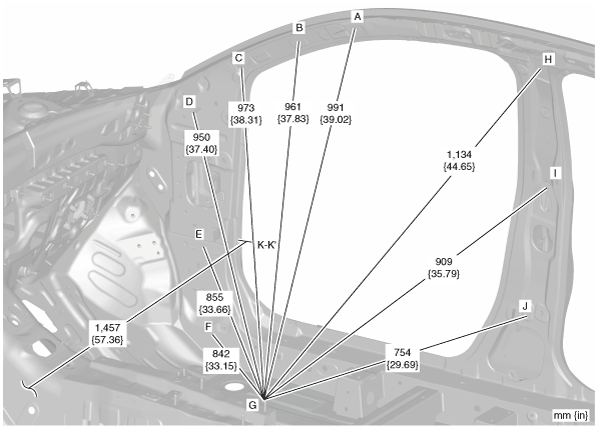

ROOM DIMENSIONS (1) [DIMENSIONS]
id098010990500
am2zzb00000700
|
adejjb00000325
|
|

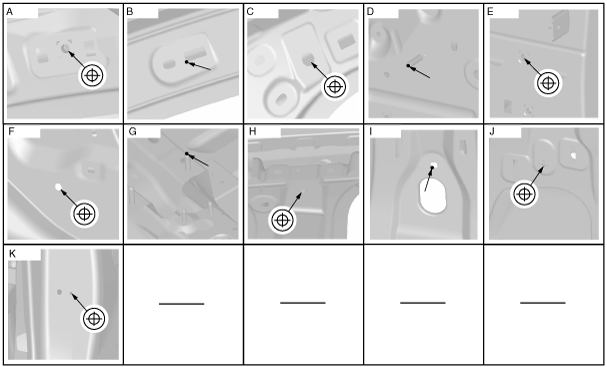

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Curtain air bag module installation nut
|
M6
|
|
B
|
A-pillar trim installation square hole
|
—
|
|
C
|
A-pillar trim installation hole
|
φ12 {0.47}
|
|
D
|
Dashboard installation stud pin
|
—
|
|
E
|
Side sill (inner) datum nut
|
φ8 {0.3}
|
|
F
|
Side sill (inner) datum nut
|
φ10 {0.39}
|
|
G
|
Shift lever installation bolt
|
M8
|
|
H
|
Front seat belt upper anchor installation nut
|
M10
|
|
I
|
B-pillar inner datum square hole
|
—
|
|
J
|
Front seat belt retractor installation nut
|
M6
|
|
K
|
Front door checker installation hole
|
φ4 {0.2}
|
