ROOM DIMENSIONS (2) [DIMENSIONS]

id098010990600

4SD

am2zzb00000678

am2zzb00000679

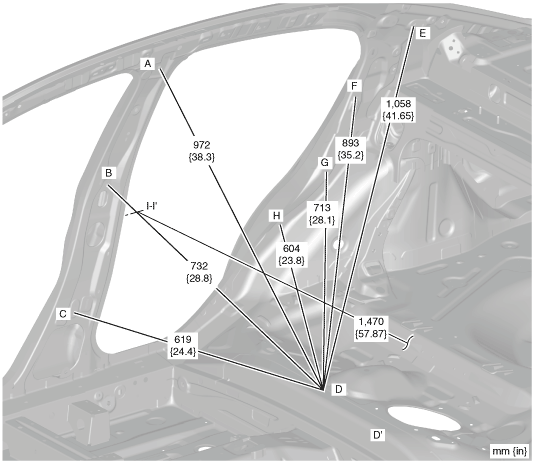

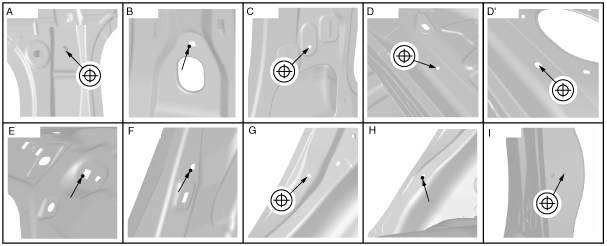

Point symbol	Designation	Hole diameter or bolt or nut size (mm {in})
A	Front seat belt upper anchor installation nut	M10
B	B-pillar inner datum square hole	—
C	Front seat belt retractor installation nut	M6
D	Crossmember No.3 datum hole	φ10 {0.39}
E	Rear pillar (inner) datum square hole	8 X 10 {0.31 X 0.39}
F	Rear pillar (inner) datum square hole	7 X 7 {0.27 X 0.27}
G	Rear pillar (inner) datum hole	φ8.6 {0.34}
H	Wheel housing (inner) datum hole	—
I	Rear door checker installation hole	φ4 {0.34}

5HB

am2zzb00000701

adejjb00000336

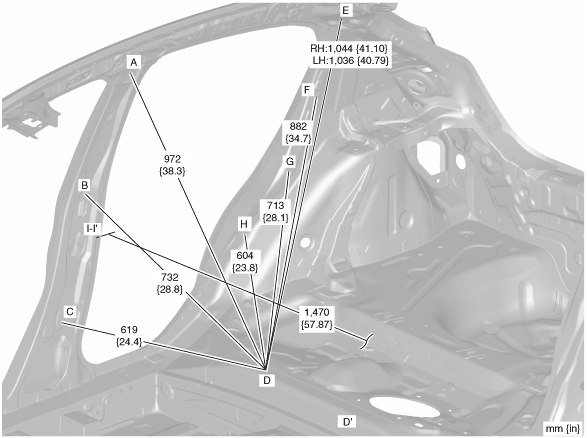

Point symbol	Designation	Hole diameter or bolt or nut size (mm {in})
A	Front seat belt upper anchor installation nut	M10
B	B-pillar inner datum square hole	—
C	Front seat belt retractor installation nut	M6
D	Crossmember No.3 datum hole	φ10 {0.39}
E	Corner plate datum hole	φ7 {0.27}
E'	Condenser installation nut	M6
F	Rear pillar (inner) datum square hole	7 X 7 {0.27 X 0.27}
G	Rear pillar (inner) datum hole	φ8.6 {0.34}
H	Wheel housing (inner) datum hole	—
I	Rear door checker installation hole	φ4 {0.34}
